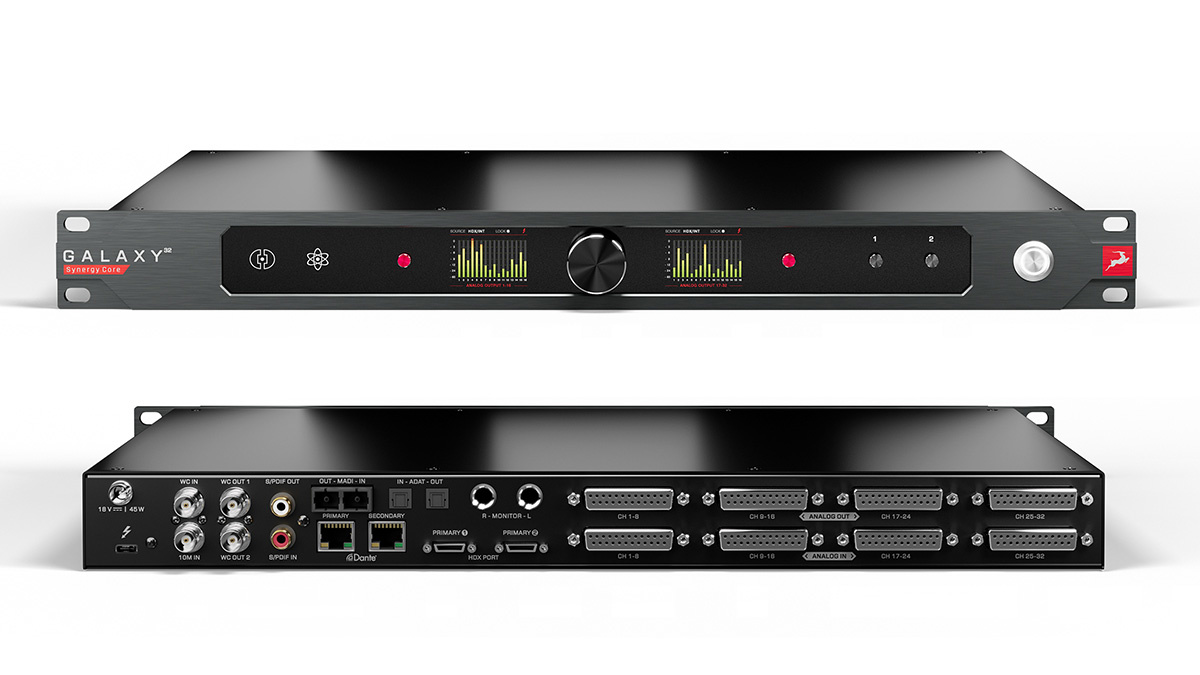

The Galaxy 32 Synergy Core

The Galaxy 32 Synergy Core

Code: 6162

32-CHANNEL AUDIO INTERFACE WITH DANTE HDX AND THUNDERBOLT 3

Price: €5995.00
Price: €5995.00
BUY Online: €5728.00
BUY Online: €5728.00
You Save €267
You Save €267
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

years

The Galaxy 32 Synergy Core sets a new performance standard in its class by expanding the capabilities of the Orion 32 line with Dante audio networking and Synergy Core processing. Designed for professional recording studios and high-profile production and broadcasting facilities, the interface offers 32 channels of analog I/O with mastering grade AD/DA conversion and clocking as well as industry standard HDX and Thunderbolt for easy integration with your setup.

    • Dimensions (W x D x H): 483 x 280 x 44mm
    • Weight: 3.4 kg
    • CONNECTIVITY
    • 32 analog input channels over 4 × D-Sub 25 connectors with AC/DC coupling switch (TASCAM standard).
    • 32 analog output channels over 4 × DC-coupled D-Sub 25 connectors (TASCAM standard).
    • Dante™ audio over IP with primary port for audio transfer over long distances and a mirrored secondary port for redundancy.
    • 2 × HDX ports (24-bit, 192kHz): up to 64 channels I/O for Pro Tools HD / HDX integration.
    • Thunderbolt™ 3 port with custom macOS & Windows drivers for low latency performance in native DAW applications.
    • Digital I/O: 64 channels of optical MADI, 8 channels of ADAT, and 2 channels over S/PDIF.
    • Clocking I/O: 1 × word clock/loop sync input, 2 × word clock/loop sync outputs, 1 × 10М input.
    • 1 × Dedicated stereo monitor output over ¼ TRS.

    CLOCKING & CONVERSION

    • Proprietary 64-bit AFC™ (Acoustically Focused Clocking) technology delivering spacious stereo image with distinct separation for an unrivalled level of detail;
    • High-resolution A/D and D/A conversion ensuring artefact-free recordings and mastering-grade converter with 130dB headroom for critical listening without coloration or signal degradation.

    REAL-TIME EFFECTS PROCESSING

    • Collection of 37 Synergy Core effects modeled after classic and rare analog outboard gear
    • Synergy Core proprietary onboard platform powered by 6 × DSP & 2 × FPGA chips for real-time effects processing with imperceptible latency;
    • Up to 128 real-time effects instances per session loaded simultaneously.

    WORKFLOW-ENHANCING FEATURES

    • Virtual patch-bay allowing execution of complicated input/output signal routing with a simple drag and drop;
    • All digital ports can be used simultaneously for easy integration with multiple systems and different setups
    • 4 x onboard low-latency stereo mixers with 32 input channels each, with adjustable levels, panning and reverb settings – suitable for monitoring or summing
    • Customizable presets complete with signal routing, level adjustments, mixer settings and effects
    • Direct monitoring with effects, processed in real-time with imperceptible latency
    • Two 1.8″ IPS display screens for independent signal metering
    • Option to work without being connected to a computer (standalone operation)
    • Wireless control of software features from a separate computer connected to the same network.

    37 INCLUDED SYNERGY CORE EFFECTS

    • VEQ-55A (3-Band EQ / HPF / LPF)
    • VEQ-4K BLACK (4-Band EQ / HPF / LPF)
    • VEQ-4K BROWN (4-Band EQ / HPF / LPF)
    • VEQ-4K ORANGE (4-Band EQ / HPF / LPF)
    • VEQ-4K PINK (4-Band EQ / HPF / LPF)
    • VEQ-HA32C (4-Band EQ / HPF / LPF)
    • VEQ-STU 900 (4-Band EQ / HPF / LPF)
    • NEU-W492 (4-Band EQ)
    • VMEQ-5 (3-Band Tube Mid-Range EQ )
    • BAE-1084 (3-Band EQ / HPF / LPF)
    • VEQ-STU 089 (3-Band EQ / HPF / LPF)
    • BAE-1023 (3-Band EQ / HPF)
    • VEQ-1A (2-Band Tube EQ)
    • VEQ-HLF (Tube 2-Band HPF / LPF)
    • VEQ-STU 169 (3-Band EQ / HPF)
    • NEU-PEV (3-Band EQ)
    • NEU-W495 (3-Band EQ)
    • Clear Q (Parametric EQ)
    • VCA160 (VCA Compressor / Limiter)
    • X903 (VCA Compressor / Limiter)
    • ALT-436C (Vari-Mu Tube Compressor Amplifier)
    • Tube 176 (Vari-Mu Tube Compressor / Limiter)
    • Stay-Levin (Vari-Mu Tube Compressor)
    • SMT-100A (Tube Leveling Amplifier / Limiter)
    • FET-A78 (FET Compress Stereo Peak Limiter)
    • FET-A76 (FET Compressor / Limiting Amplifier)
    • BAE 10DCF (Compressor / Limiter)
    • PowerEX (Expander)
    • PowerFFC (Feed-Forward Compressor)
    • PowerGate (Noise Gate)
    • BA-31 (Germanium Mic Preamp)
    • Gyraf Gyratec IX (Dual Tube Mic Preamp with HPF)
    • Marble White AutoWah (Auto-Wah Pedal)
    • Vari-Speed Tremolo (Tremolo)
    • Auraverb (Reverb)
    • Master De-Esser (De-Esser)
    • A-Tuner (Guitar Tuner)
