Tascam

Sonicview 24

Code: 6460

Interactive Digital Mixing Station

Contact for Price
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout

Pre-Order

Enquire to be notified upon availability

years

The New Way of Mixing
Surprisingly Intuitive and Easy

Tascam has a long history of high-quality recording products and digital mixers, culminating in the legendary DA-88 eight-track modular multi-track recorder and the DM-4800 digital mixer, a workhorse combination that once set a new standard. With Sonicview, Tascam has created an entirely new line of digital mixing consoles that incorporate the latest technology and make it easy to view and control all of the parameters you want, when you want, with fully customisable touchscreens and user-definable buttons, motorised faders and intuitive control software.

Sonicview recording consoles integrate beautifully with the rest of your system, thanks to built-in Dante networking, a 32-bit/96-kHz multi-channel USB audio interface and plenty of inputs and outputs. No-compromise audio quality and a 54-bit floating-point FPGA mixing engine combines with ample signal processing, an expansion slot for additional connectivity and wireless remote control to make Sonicview mixers the next-generation choice for recording studios, remote recording, touring, installed sound and broadcasting.

    • Tascam VIEW (Visual Interactive Ergonomic Workflow) interface allows intuitive operation with three different view modes.

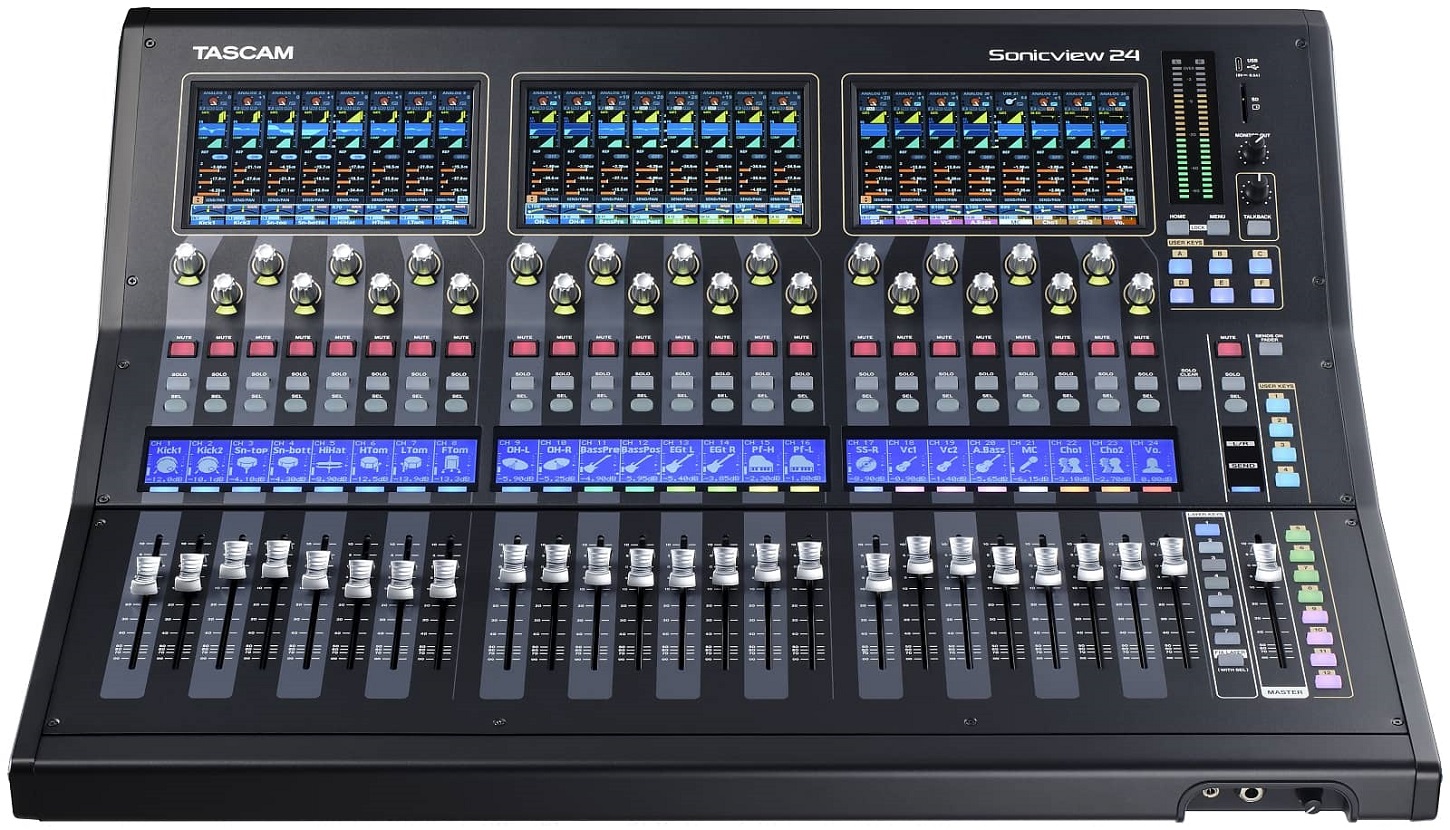

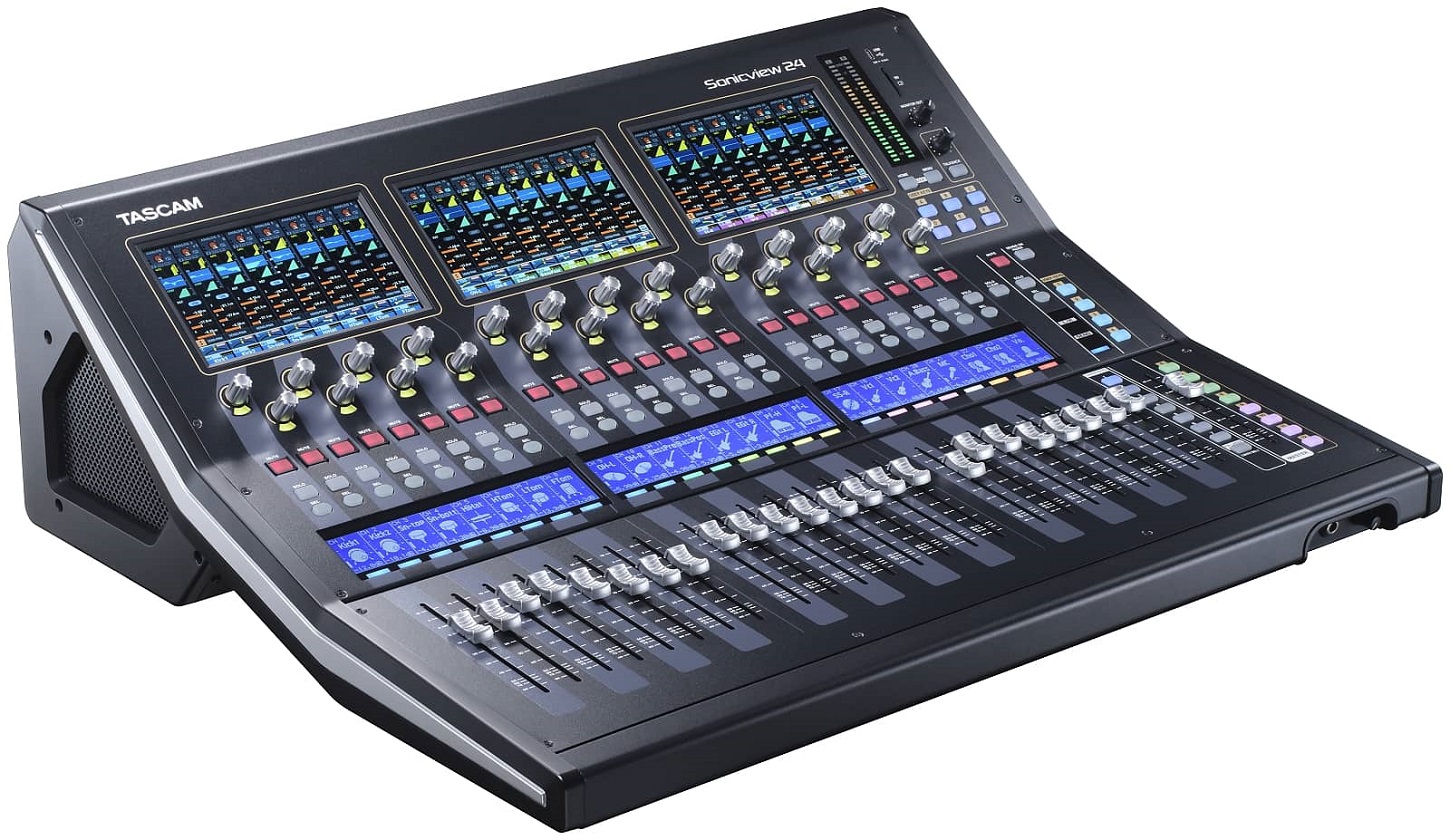

    • Multiple displays with three 7-inch colour touchscreens.
    • 44 input channels (40 mono, 2 stereo).
    • 22 flexible output buses plus main L/R bus with 31-band graphic EQ.
    • 54-bit float-point FPGA mixing engine, 96 kHz sampling rate.
    • Ultra-low latency: 2× Fs (20.8 μs) in mixing engine, 0.51 ms analogue-to-analogue.
    • 32-bit/96 kHz A/D and D/A conversion.
    • Tascam HDIA (High-Definition Instrumentation Architecture) microphone preamplifiers.
    • Built-in Dante interface (64 inputs/outputs); supports redundancy, AES67, DDM and SMPTE 2110.
    • 32-bit/96 kHz USB audio interface (32 inputs/outputs).

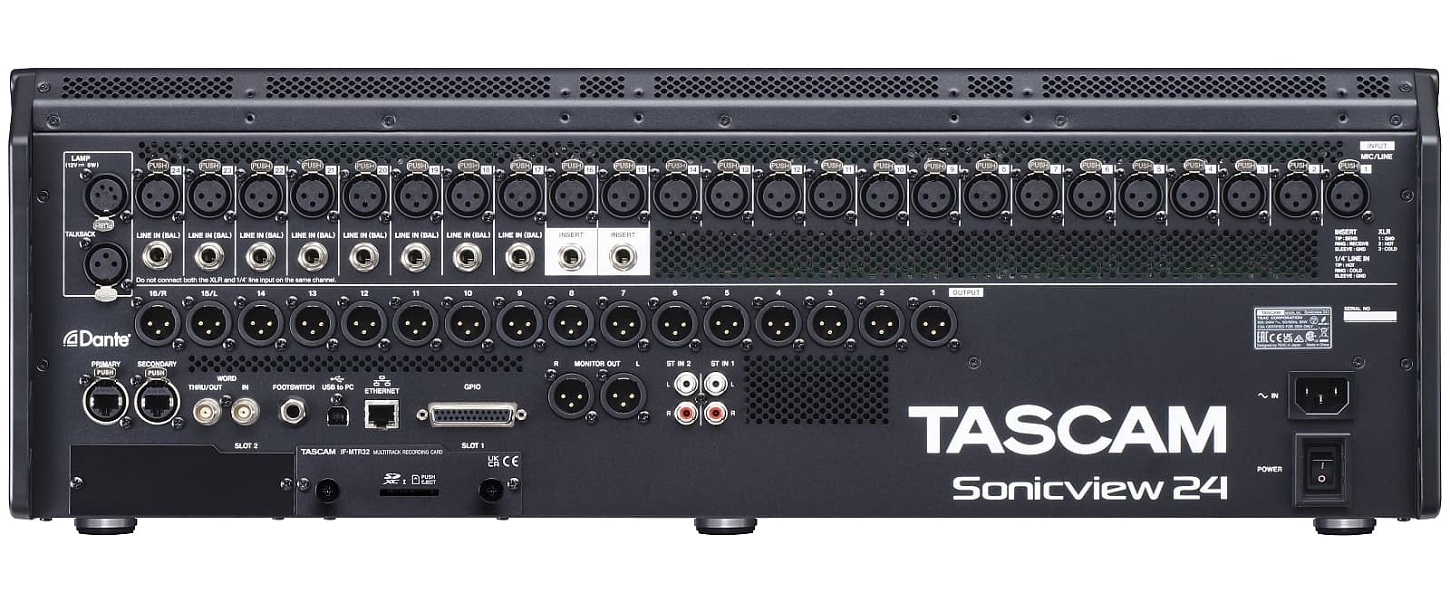

    • 24 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing.
    • Four multi-effects processors.
    • Tascam Sonicview Control software for Windows, macOS and iPadOS enables remote control and off-line editing.
    • Two Tascam expansion slots: Optional 32-track SDXC recorder, MADI, AES/EBU and analogue I/O cards available for the second slot.
  • Inputs: 52 audio channels (40 mono, 2 stereo, 4 stereo effect returns)
  • Busses: 32 (22 Aux/Group switchable mix busses, 1 stereo main bus, 4 stereo send busses)
  • Built-in effects: 4
  • At 96 kHz: 160 maximum
  • At 48 kHz: 256 maximum
  • Mic/Line (XLR): 24
  • Line (RCA): 4 (2 × stereo)
  • Dante: 32 (96 kHz), 64 (48 kHz)
  • Expansion cards: 2 × 32 (96 kHz), 2 × 64 (48 kHz)
  • USB audio: 32
  • Built-in player: 2 (1 × stereo)
  • Oscillator: 1
  • Talkback: 1
