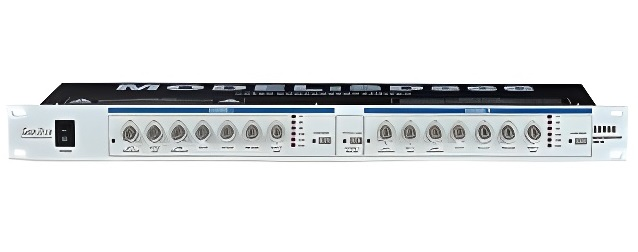

SD 866 B-STOCK

Code: 959

Professional Audio Signal Compressor/Limiter

Price: €149.00
Price: €149.00
BUY Online: €142.00
BUY Online: €142.00
You Save €7
You Save €7
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it with Free Delivery within 24 hours, at your closest Akis Express Collection point!
Add to Cart

In Stock

years

ORG pressure limiter SD866 is a professional audio signal dynamic control equipment launched by the ORG brand, which belongs to the pressure limit device product, which was released on September 23, 2025. The device uses dual-channel joint control and separate control conversion functions to support joint control or independent channel control respectively. Its core parameters include continuous adjustable compression ratio from 1 to ∞ (limit), which can be controlled by mode conversion or separately. The device operation mode is compatible with dual-channel synchronous control and independent channel processing





    • Compressor proportion can be adjusted continuously.
    • The threshold of compress level, The start time and release time can be adjustaed.
    • Bypass switch.
    • Each channel with one noise gate. Adjustable threshold.
    • 1/4 TRS, RCA socket.
    • Two additional connectors make sound reach the effect of " off screen voice".
    • Bouble channels union-control or sole-control conversion function.

  • Frequency Response: 10Hz~30KHz, ±0.5dB
  • THD: 0.06
  • S/N Ratio: 97dB
  • Input Impedance:: 20KO(UNBAL), 40KO(BAL)
  • Maximum Input Level: +21dB(ref: 0.775Vrms)
  • Output Impedance: 51O(UNBAL),102O(BAL)
  • Maximum Output Level: +21dB(ref: 0.775Vrms)
  • Side Chain Input Impedance: 10KO
  • Side Chain Maximum Input Level: +21dB(ref: 0.775Vrms)
  • Side Chain Output Impedance: 51O(UNBAL),102O(BAL)
  • Gate Threshold: -55dB~-10
