OC818 Dual Set Plus Black

Code: 6980

Large-diaphragm Condenser Microphone with Multiple Polar Patterns

Price: €2499.00

BUY Online: €2195.00

You Save €304

including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout

Add to Cart

Pre-Order

Enquire to be notified upon availability

Engineered and manufactured in Austria, The OC818 is Austrian Audio’s premier, professional, large diaphragm microphone. Its high sensitivity, low self-noise and ability to handle everything from a whisper to extreme SPLs make it the most advanced microphone for studio, broadcast and live applications. As the unique ceramic capsule design is so consistent, any OC818 is match-paired with any other OC818, and when in cardioid mode, it can also be match-paired with any OC18, its affordable, smaller sibling.

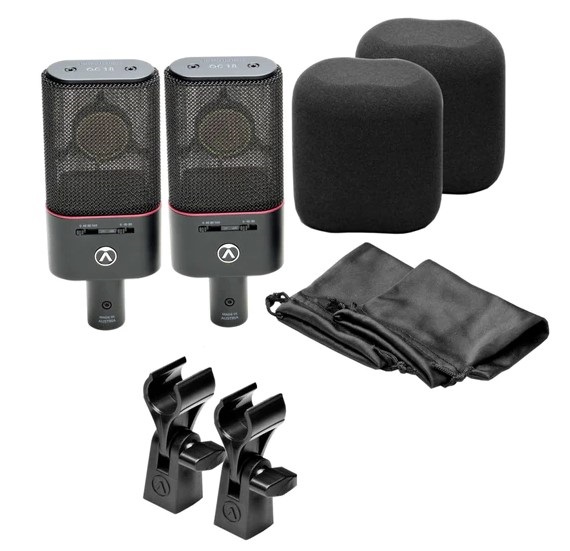

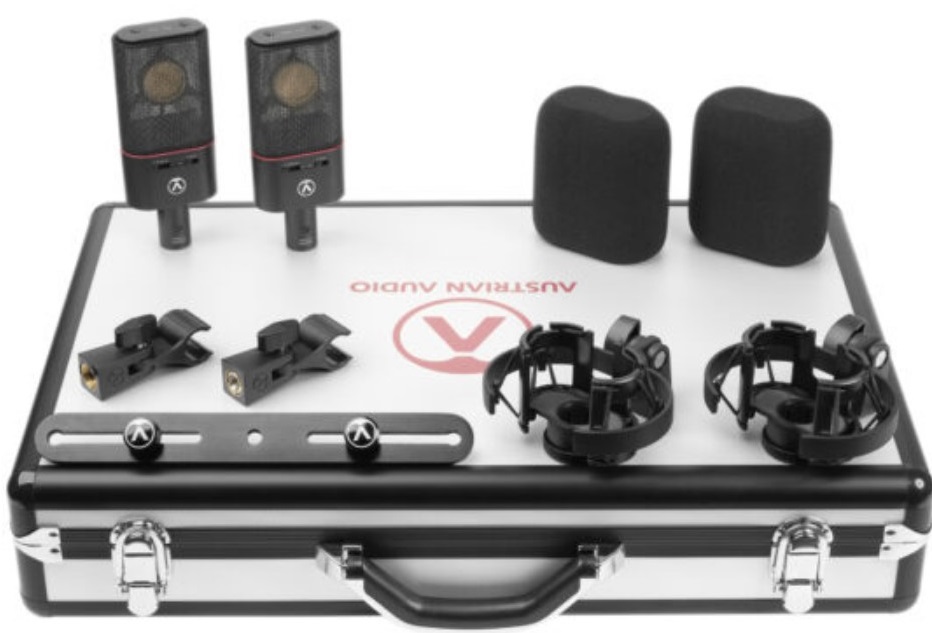

Includes in:

2x OC818 Microphone
2x OCS8 Spider mount
2x OCC8 Mini XLR
2x OCH8 Mic Clip
2x OCW8 Windshield
SB1 Stereo mount bar
OCDC1 Case

Stereo Set of Dual-Output Large-Diaphragm Condenser Microphones
Switchable directional characteristics: omnidirectional, cardioid, supercardioid, figure eight, 255 intermediate levels via app
Freely configurable directional characteristics via PolarDesigner plug-in for Win & Mac
Real-time access to directional characteristics via optional OCR8
Bluetooth dongle (Art.467336 - not included) and PolarPilot app for Android & iOS
Handmade CKR12 ceramic capsule based on the CK12 capsule
Frequency range: 20 - 20,000 Hz
Sensitivity: 13 mV / Pa
Output impedance: 2x 275 Ohm (balanced)
Input impedance: 1 kOhm
Max. sound pressure level: 148 dB / 158 dB (with pad)
Inherent-noise: 9 dB SPL (A)
Signal-to-noise ratio:> 84 dB
Low cut filter: 40, 80 & 160 Hz
Pad: -10 dB & -20 dB
Dimensions (OC818 microphone): 157 x 63 x 35 mm
Weight (OC818 microphone): 360g
Includes 2 elastic brackets, 2 mini XLR adapters, 2 microphone clips, 2 windscreens, transport case and adjustable stereo rail
HAndmade in Vienna

Impedance: 275 Ω (symmetrical)
Polar pattern: cardioid, omnidirectional, figure-8, hypercardioid & custom programmable
Load impedance: > 1 kΩ
Frequency range: 20 Hz - 20 kHz
Supply voltage: 48 V (< 4mA, typical 2.1mA)
Sensitivity (all directions): 13mV/Pa
Main Connector: XLR 3 pin

Equivalent noise level: 9 dB SPL (A)
or remote: Mini XLR 5 pin Connector for back membrane
Max SPL: 148 dB SPL (158 dB SPL)
Dimensions: 157 x 63 x 35 mm
Switchable pad: -10 dB, -20 dB
Weight: 360g
Analog Low Cut filter: 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below)
