Code: 6986

Cardioid Pattern Precision Microphone

Price: €848.00
Price: €848.00
BUY Online: €758.00
BUY Online: €758.00
You Save €90
You Save €90
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

years

Versatile Cardioid Condenser in the Viennese Tradition

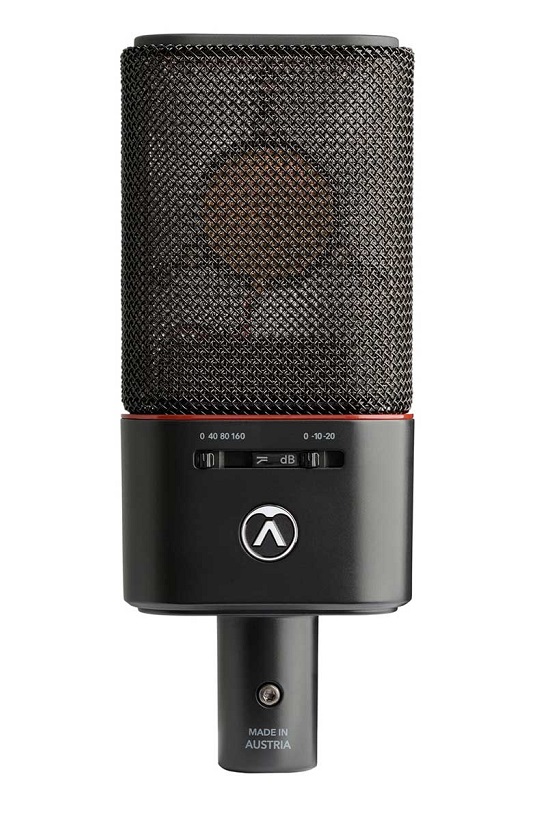

Handcrafted in the heart of Vienna, the City of Music, the OC18 is a versatile large-diaphragm condenser microphone with a fixed cardioid polar pattern, -10dB and -20dB pads, and a three-position, switchable highpass filter. You can use the OC18 on any source with excellent results. Austrian Audio microphones are rigorously tested with state-of-the-art measurement systems and are precision matched to within a stringent 1dB tolerance. This means you can confidently use your OC18 along with another OC18 (or the company’s multi-pattern OC818 set to cardioid) in a stereo-pair configuration and assure stunning results.

Outstanding results on any source
Austrian Audio pours into their products everything they have learned in more than 300 years of combined experience. The company’s proprietary CKR12 capsule bears this wisdom, and a superior handmade capsule is the heart of any classic mic. In keeping with a fixed cardioid polar pattern, the OC18 uses the single-diaphragm version of the CKR12 capsule, which — in concert with the microphone’s custom electronic circuitry — delivers excellent results when used for vocals, acoustic guitar, piano, drum overheads, strings, brass, percussion, and room capture.

What’s more, the OC18’s robust, native 148dB maximum SPL capability — further increased by the inclusion of selectable -10dB and -20dB pads — also makes it ideal for louder sources such as tom toms and electric guitar cabinets.

Versatile cardioid polar pattern
The OC18 uses the same handmade-in-Vienna CKR12 ceramic capsule as the OC818, but with only a single diaphragm, which keeps the cost down. After all, if you don’t need multiple polar patterns, then why pay for them? With the OC18, you’re getting almost exactly the same microphone as the OC818 with identical sonic performance. A great-sounding cardioid condenser mic like the OC18 will enjoy constant use in your studio.

The new Vienna classics
Carrying on the rich legacy of high-end Viennese microphone design into the modern era, Austrian Audio is driven by an engineering team with over 300 years of combined experience. Their motto: “Making Passion Heard.” Their mission: to design and manufacture a new generation of recording tools that embrace cutting-edge technologies and sonic excellence while honoring Vienna’s rich musical heritage. That vision is realized in Austrian Audio’s proprietary, handcrafted CKR12 large-diaphragm capsule, which is used in the company’s excellent OC18 and OC818 condenser microphones.

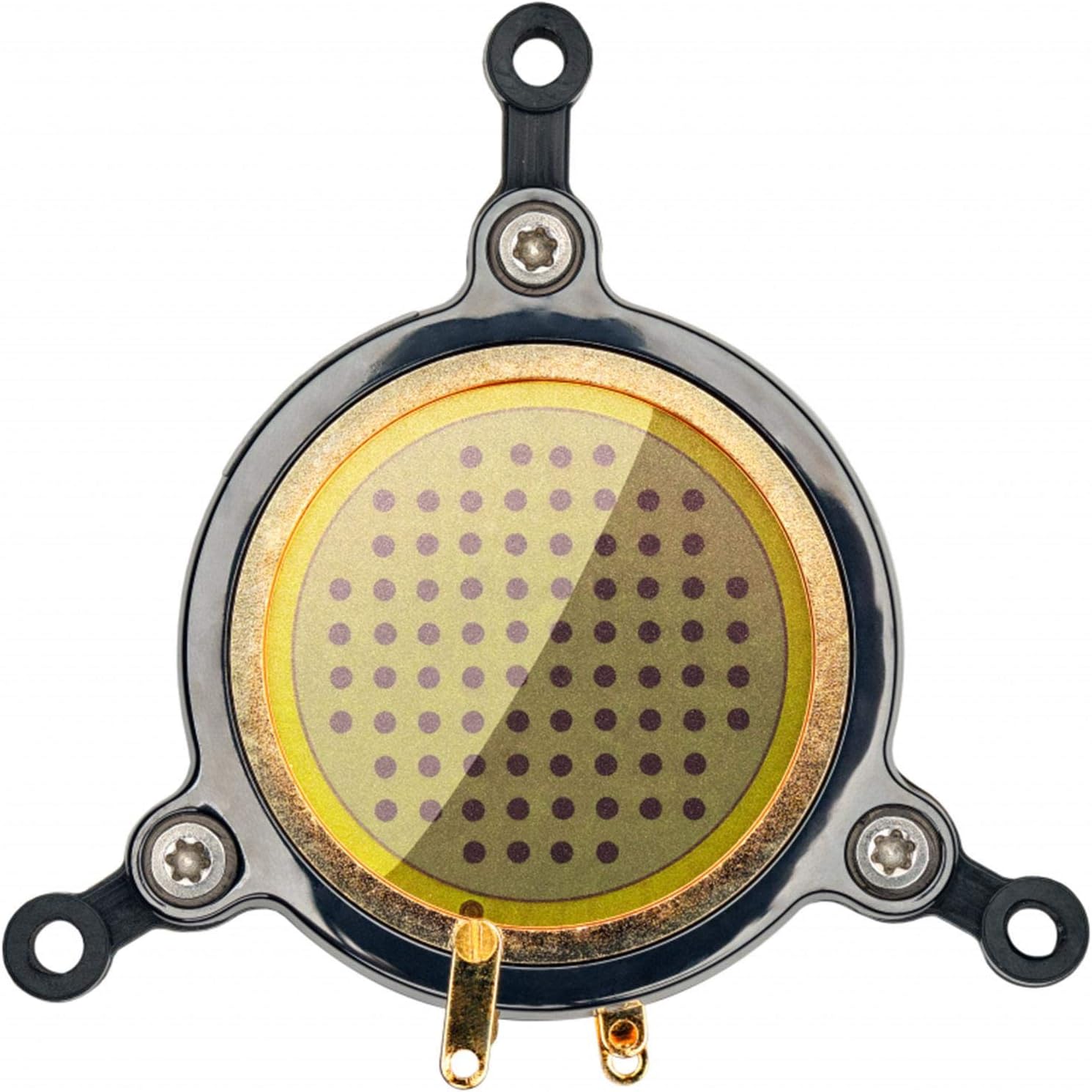

    • Handmade, single-diaphragm CKR12 ceramic capsule
    • Austrian Audio OC18 and OC818 mics are precision matched to within 1dB tolerance for accurate stereo capture
    • Compatible with Austrian Audio OC818 for spaced-pair applications
    • Polar pattern: Cardioid
    • Frequency response: 20Hz–20kHz
    • Sensitivity (all directions): 13mV/Pa
    • Equivalent Noise Level: 9dB SPL (A)
    • Maximum SPL: 148dB (158dB SPL with -10dB pad engaged)
    • Switchable pad: -10dB, -20dB
    • HPF: switchable 40Hz, 80Hz, 160Hz
    • Impedance: 275Ω (symmetrical)
    • Load impedance: >1kΩ
    • Supply voltage: 48V phantom (<2.2mA)

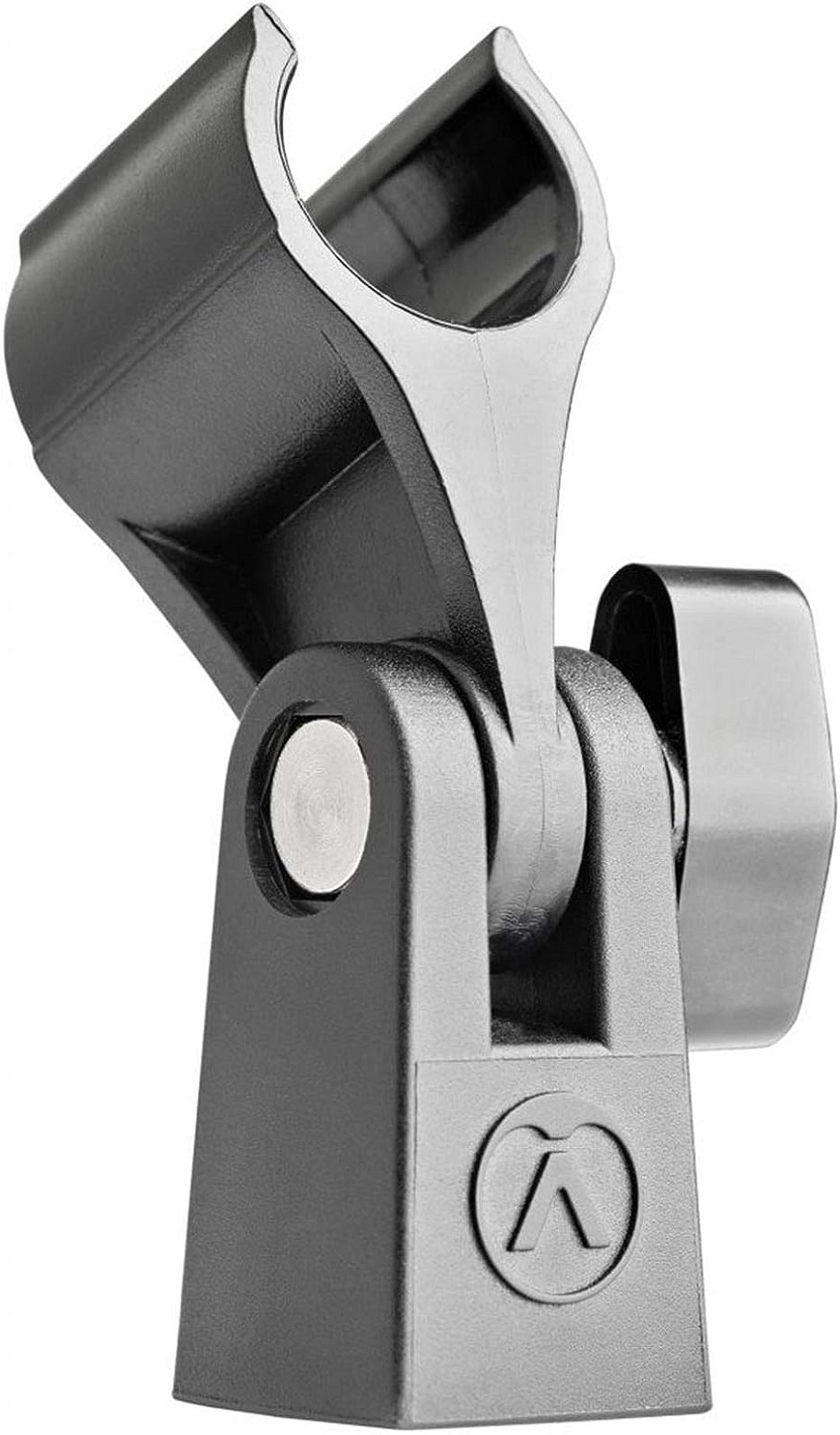

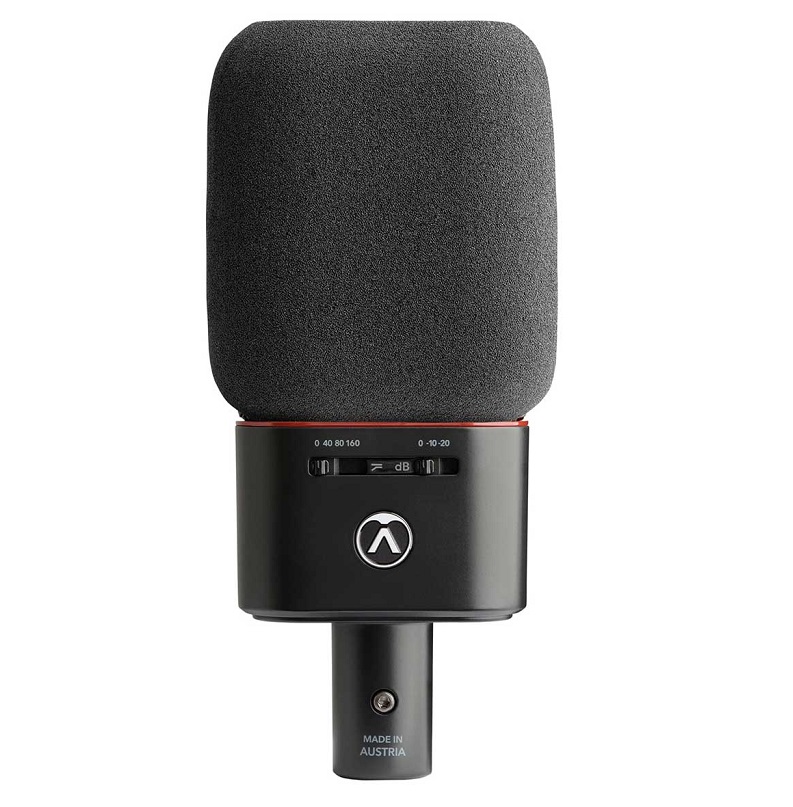

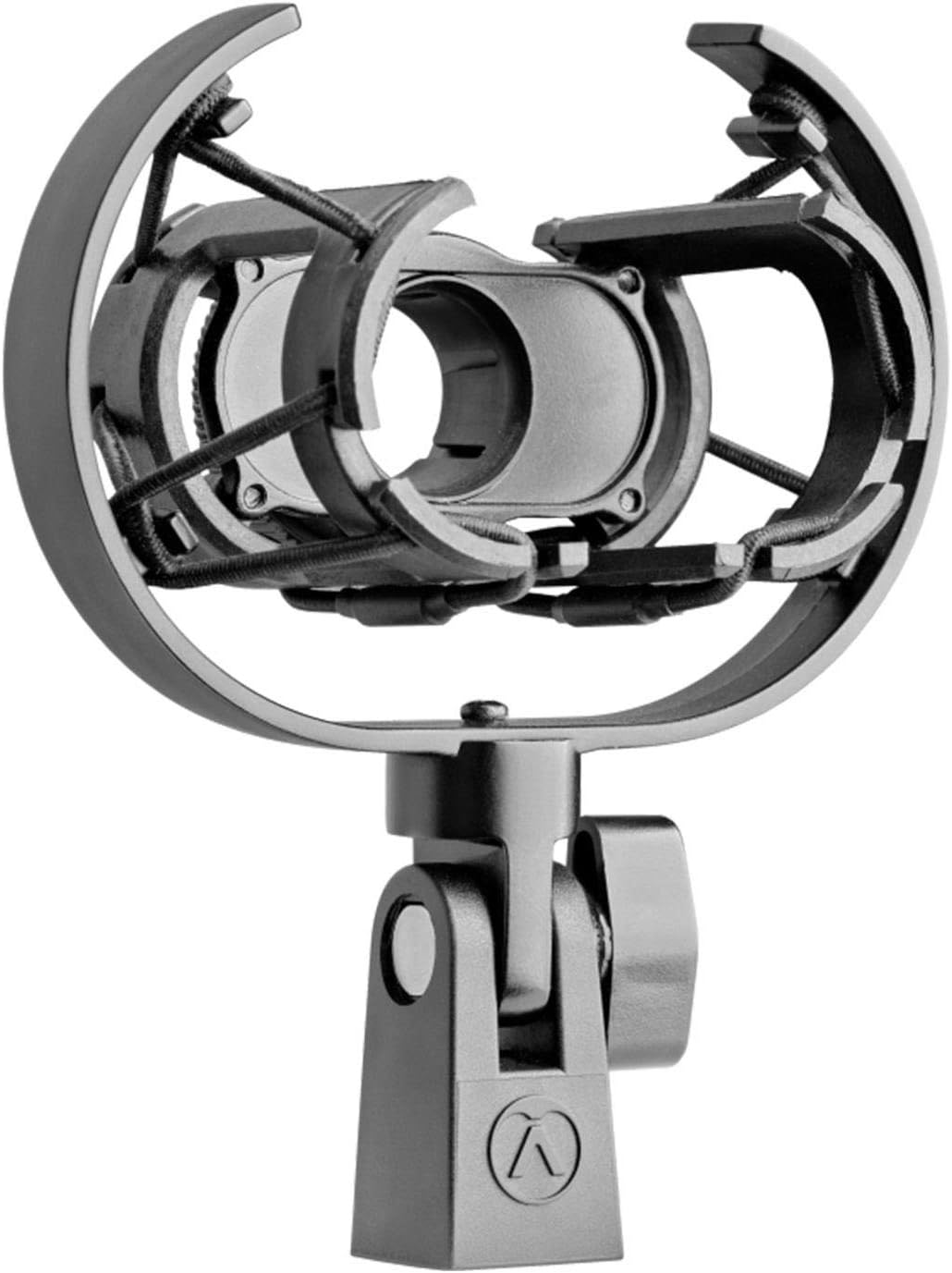

    • Includes spider mount, mic clip, windscreen, and storage case
  • Microphone Type: Condenser
  • Polar Pattern: Cardioid
  • Diaphragm Size: Large
  • Frequency Range: 20Hz-20kHz
  • Max SPL: 148dB SPL
  • Output Impedance: 275 ohms
  • Sensitivity: 13mV/Pa
  • Self Noise: 9dB SPL (A weighted)
  • Low Cut Filter: 40Hz, 80Hz, 160Hz
  • Pads: -10dB, -20dB
  • Connector: XLR
  • Color: Black
  • Power Source: 48V phantom power
  • Dimensions: 15.7cm x 6.3cm
  • Weight: 0.35Kg
  • Included Accessories: Carrying Case, Spider Mount, Foam Windshield, Mic Clip
