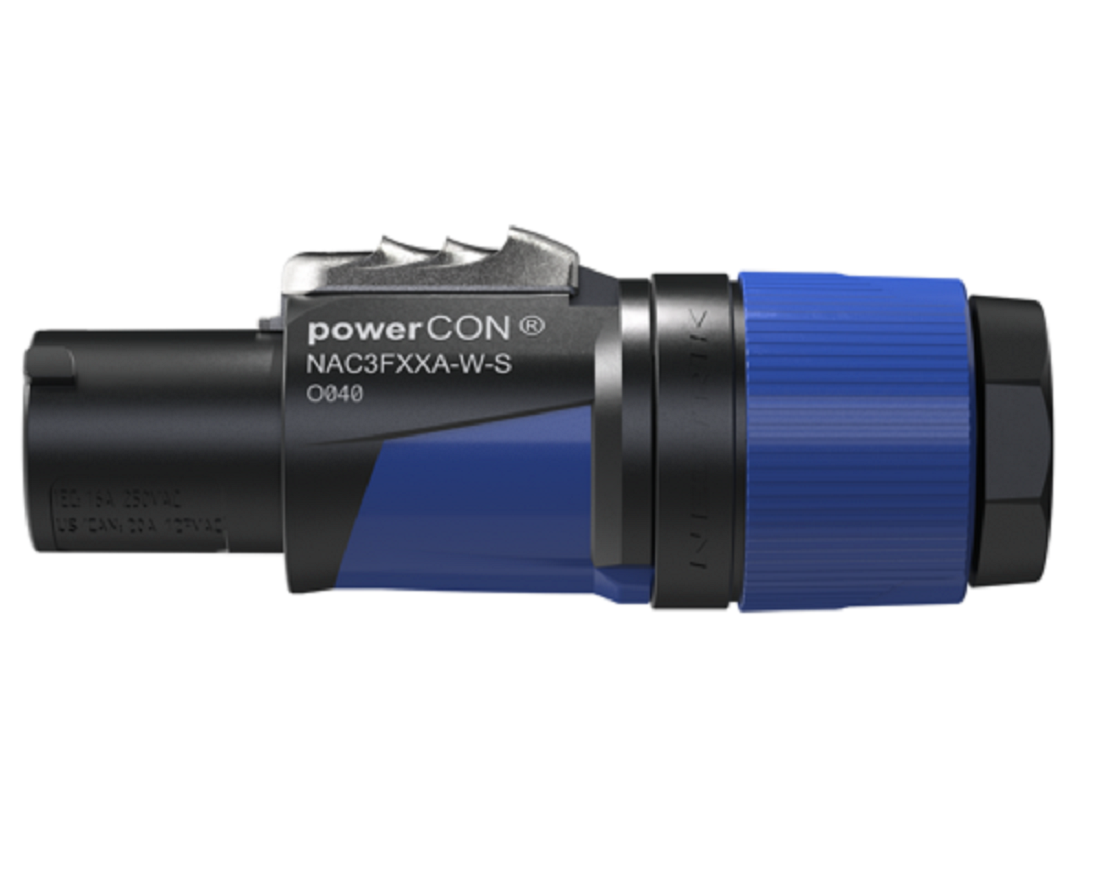

17085 NAC3FXXA W S Vorne LQ

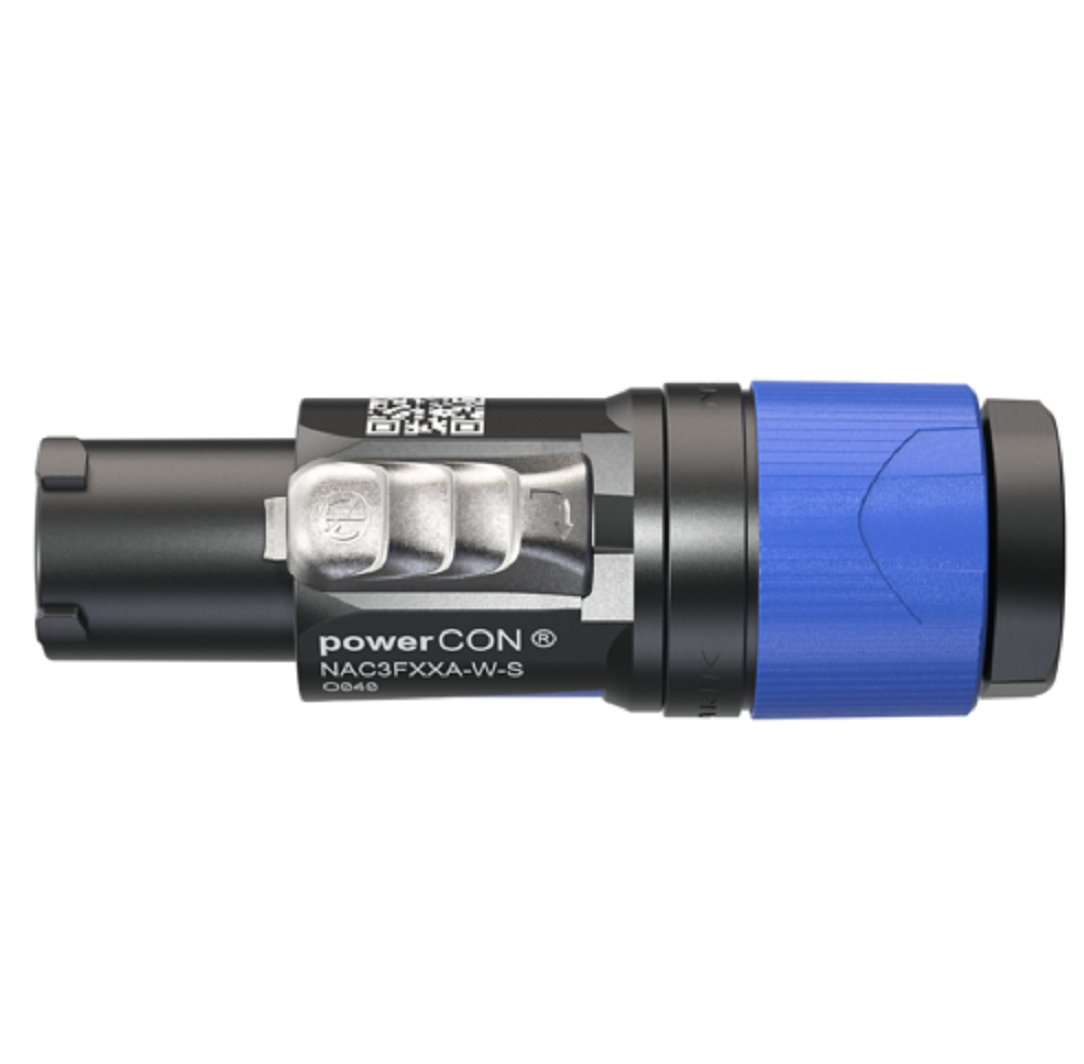

17086 NAC3FXXA W S Oben LQ

Neutrik

NAC3FXXA-W-S

Code: 7302

Single Phase PowerCON Connectors

Price: €9.40
Price: €9.40
BUY Online: €8.90
BUY Online: €8.90
You Save €0.5
You Save €0.5
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it within 24 hours, at your closest courier!
With free delivery for orders total € 100 +
Add to Cart

In Stock

Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 6 - 12 mm.

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.


    • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating .
    • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
    • Easy and reliable twist lock systemErgonomic design with slip-proof two-component molded housing
    • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
    • Superior NEUTRIK quality standard, extremely robust and reliable
    • Improved kink protection by two-component bushing
  • Connector series: powerCON blue/grey
  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: > 3 kVac (after mating cycles)
  • Insulation resistance: > 10 GΩ (initially)
  • Number of electrical contacts: 2 + PE
  • Cable O.D.: 6 - 12 mm
  • Lifetime: Typically 5’000 mating cycles
  • Wiresize (mm²): 1.5 – 2.5 mm²
  • Wiresize (AWG): 16 – 12 AWG
  • Locking device: Twist lock
  • Termination: Screw type terminals
  • Contact plating: Ag
  • Contacts; Copper Alloy
  • Insert: Polyamide (PA6.6)
  • Locking element: Zinc diecast
  • Shell Polyamide: (PA6) / TPE
  • Strain relief: Polyketone
  • Bushing: Polypropylene / TPE
  • Temperature range: -33 °C to +80 °C
  • Protection class: IP20
  • Flammability acc. to UL94: V-0
