Monitor Speakers

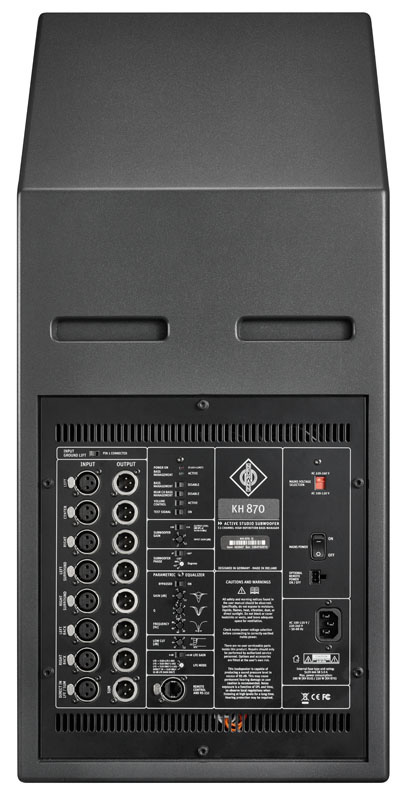

x1 KH 870 Back Neumann Studio Subwoofer G back

Neumann

KH 870 Active Studio Subwoofer

Code: 2026

High-quality Active Studio Subwoofer

Price: €4332.00
Price: €4332.00
BUY Online: €3898.00
BUY Online: €3898.00
You Save €434
You Save €434
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

years

The Neumann KH 870 Active Studio Subwoofer is compatible with all standard consumer formats from mono through to the latest 7.1 HD systems thanks to the use of the 7.1 High Definition BassManager system.

The Neumann KH 870 subwoofer is designed to complement our extensive range of monitors, and can be used on its own, or daisy-chained to make larger systems capable of higher SPL. The KH 870 can be used in music, broadcast, and post production studios for tracking, mixing, and mastering. The cabinet can be positioned next to a wall or flush mounted into a wall due to the front mounted port.

Eight channels of analog or an optional 8-channel, 24-bit, 192 kHz digital input card ensures flexible interconnectivity for modern studios. Four-mode LFE-channel processing guarantees compatibility across all formats and industries. Forth-order crossovers and flexible acoustical controls allow for seamless system integration. Built-in volume control and a hardware remote control allows for centralized system control independent of the source, and the electronics can be remote located to reduce cabling.

The latest amplifier technology and acoustical components have been used to ensure the most accurate sound reproduction possible. Robust drivers, a rock-solid cabinet, and carefully designed ports guarantee a tight, articulate, and distortion-free low frequency reproduction, even at high replay levels. Using the sum output, Plane Wave Bass Array (PWBA) techniques acoustically improves lateral consistency in the listening area. The Bass extends down to 18 Hz.

    • Amplifier, cont(THD < 0.1%)/peak output power: 320W/400W
    • 7.1 Channel High Definition Bass Management compatible with all formats from mono to 7.1
    • Bypassable 4th order 80 Hz active crossover for maximum compatibility with consumer reproduction
    • 0 and +10 dB LFE gain and 4-mode LFE processing
    • Independent control of Bass Management for front and back channels
    • System wide volume control via optional hardware remote controls or RS-232
    • Acoustical controls adapt the subwoofer’s response to the environment
    • Remoteable electronics (REK 3 and an SC nn) for installation convenience, less cabling, and convenience of use
    • Integrated electronic limiter for amplifier and driver protection
    • Low heat dissipation amplifiers
    • Low frequency extension for main loudspeakers down to 18 Hz
    • Low distortion magnetically shielded long-throw drivers
    • Reduced bass compression at high SPL from generously proportioned bass reflex ports
    • Large system with 6 dB higher output than KH 810
    • Height x width x depth: 735 x 330 x 645 mm (28.9" x 13" x 25.4")
    • Weight: 47.1 kg
