Portable Digital Audio Recorders

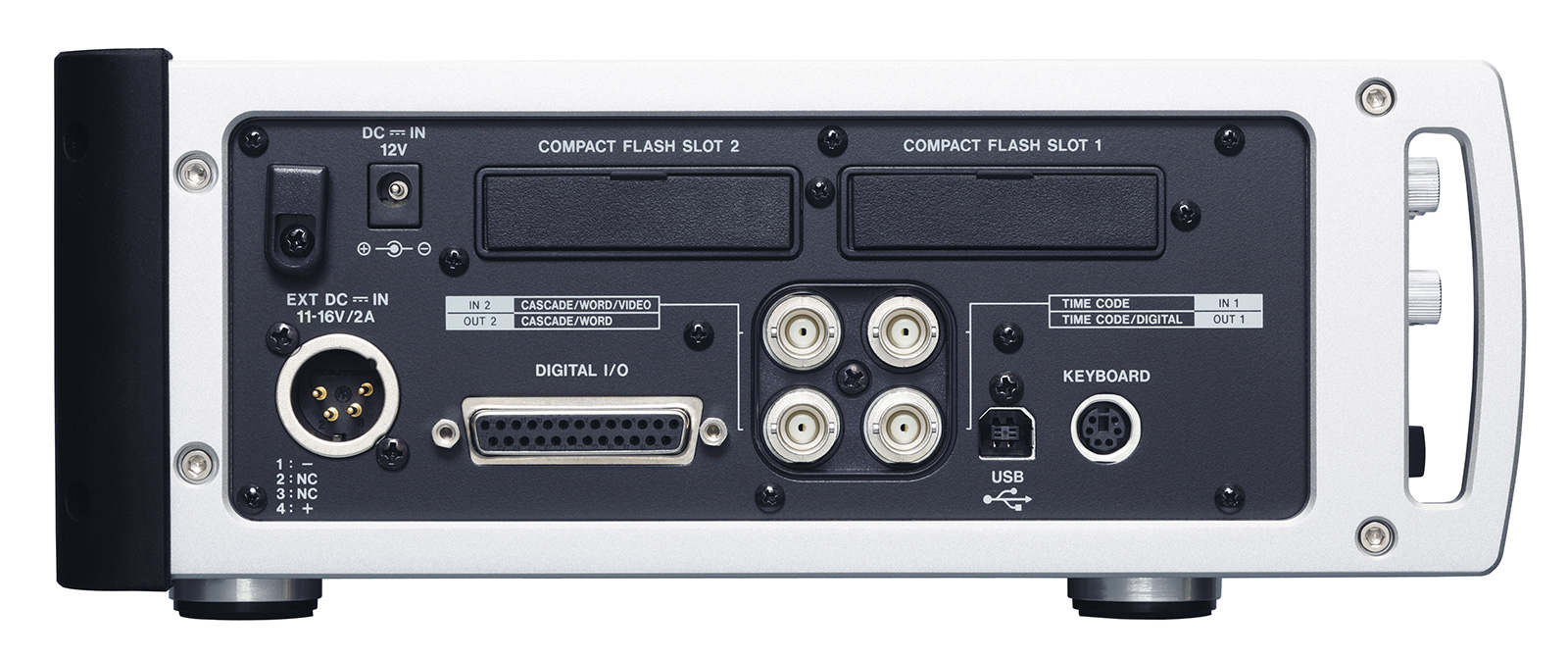

hsp82 left side

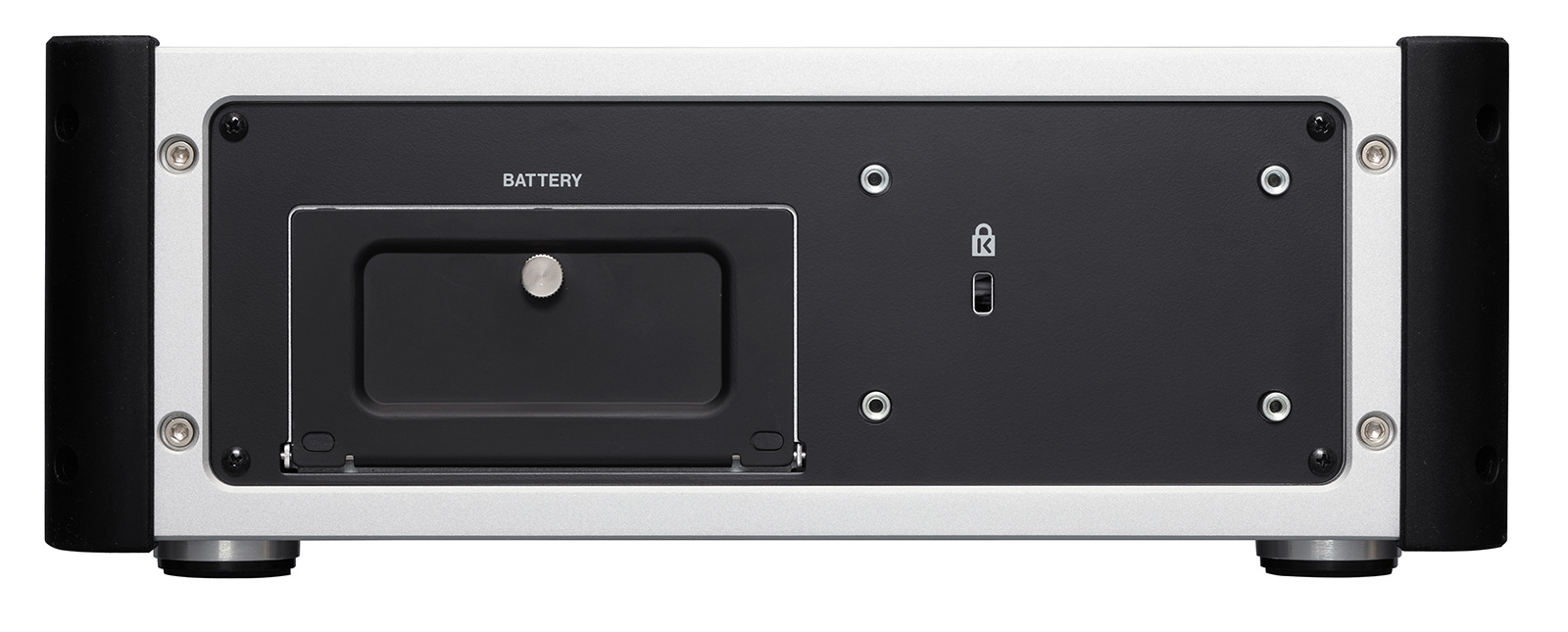

hsp82 rear

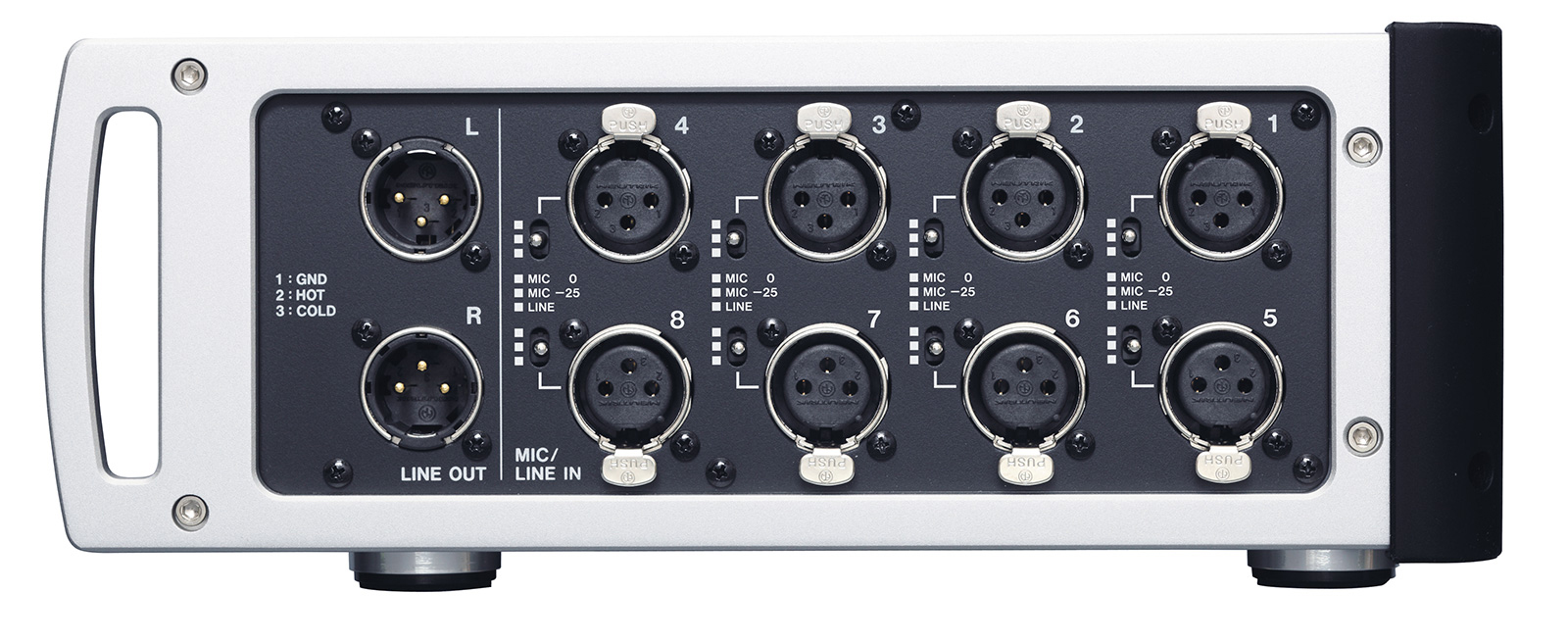

hsp82 right side

HS-P82

Code: 3054

8-Channel Field Audio Recorder

Price: €2980.00
Price: €2980.00
BUY Online: €2648.00
BUY Online: €2648.00
You Save €332
You Save €332
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

years

TASCAM's HS-P82 offers 8 tracks of the highest quality recording, yet it's built for the rigors of location recording with reliable solid-state performance. The HS-P82 is built for location television and film production audio, with eight microphone inputs for big shoots or reality programs.

Audio is recorded at up to 192kHz/24-bit WAV format to a pair of Compact Flash cards. This solid state media is completely reliable with no moving parts, and you can record to both cards simultaneously for extra security (card-mirroring). The Broadcast WAV files include iXML metadata for quick import into nearly any video or audio editing system, either via the USB 2.0 connection or a standard card reader.

For multi-microphone music or surround effects recording, the HS-P82 includes Mid-Side decoding – either recorded to the track or only for monitoring & playback. Microphone gain settings can be ganged together for input level control or fades, and inputs automatically mute when the gain is moved to its minimum setting.

TASCAM also provides firmware upgrades for products from time to time.

The latest upgrade - V1.20 – provides the ability to rename takes and automatically start and pause recording in response to the state of an external timecode signal.

The HS-P82 offers several options for power. It runs on either NP batteries or AA, an included AC adapter, external DC input or a V-mount adapter for Endura batteries. An internal slate microphone is available for naming takes. Functions like a 5-second pre-record buffer, front panel lockout and headphone output alert signal further inspire confidence.

For high-resolution music recording, a set of AES/EBU connectors is available for attaching pedigree A/D converters and preamplifiers. SMPTE timecode in and out, video and word sync are provided. All of this is controlled from a color touchscreen interface which makes operation fast and simple.

    • Rugged and reliable aluminum construction
    • 8 XLR mic inputs, each with phantom power, analog limiting, and a low cut filter
    • Recessed front-panel trim controls for each channel prevent accidental changes
    • A stereo mixdown track can also be recorded for instant use during editing
    • Captures high-definition audio at rates up to 24-bit/192kHz
    • Records onto industry-standard CompactFlash cards, which are durable and reliable.
    • A pair of CF slots allows backup, mirror recording, and A/B recording
    • Broadcast WAV audio files include iXML metadata for use with a variety of audio and video editing systems
    • USB port for convenient file transfer to any computer
    • Powering options include AA or NP batteries, the included AC adapter, an external
    • DC input, or a V-mount adapter for Endura batteries
    • 1/4" headphone jack with independent level control and headphone output alert signal
    • Built-in slate mic lets you audibly label each file
    • 5-second prerecord buffer can help save missed audio moments
    • A set of AES/EBU connectors allow you to connect high-end A/D converters and preamplifiers
    • Timecode I/Os, video, and word sync connectors are provided for keeping perfect sync with other A/V devices
    • Controlled via a color touchscreen for fast, simple operation
    • Takes Compact Flash (CF) cards up to 128GB
    • Weight: 1Kg
  • Recording media    CF card (Compact Flash)
  • File system    FAT32
  • File format    BWF (Monophonic, Polyphonic)
  • Number of channels    8 channels (44.1k / 48k / 88.2k / 96k Hz)
  • 8 channels + Stereo mix (44.1k / 48k Hz)
  • 4 channels (176.4k / 192k Hz)
  • Quantization bit rate    16 / 24-bit
  • Sampling frequency    44.1k / 47.952k / 48k / 48.048k / 88.2k / 96k / 176.4k / 192k Hz
  • (47.952k / 48.048k Hz: 48kHz ±0.1% pull-up/pull-down)
  • Reference clock    Internal, Word in, Video in, Digital in (CH1-2, CH3-4, CH5-6, CH7-8)
  • Timecode frame rate    23.976 / 24 / 25 / 29.97 DF / 29.97 NDF / 30 DF / 30 NDF
  • Built-in Mic    Omnidirectional, monaural
  • Attach time    3 msec
  • Release time    300 msec
  • Threshold    –5dBFS
  • Ratio    32:1
  • Low cut filter
  • Cut off frequency    40 / 80 / 120 Hz
  • Slope    –12dB/OCT, –18dB/OCT
  • Mic/Line input (1-8)
  • Connector    XLR-3-31 (1: GND, 2: HOT, 3: COLD) × 8
  • LINE    10Ω
  • MIC –25    2.4Ω
  • MIC 0    2.4Ω
  • LINE    +6dBu (1.55Vrms, –9dB), +4dBu (1.23Vrms, other than –9dB)
  • LINE    +15dBu (4.36Vrms), +18dBu (6.16Vrms), +20dBu (7.75Vrms), +22dBu (9.76Vrms), +24dBu (12.28Vrms)
  • MIC –25    +11dBu (2.75Vrms)
  • MIC 0    –14dBu (0.15Vrms)
  • MIC –25    –45dBu (4.36Vrms)
  • MIC 0    –70dBu (0.25Vrms)
  • Connector    XLR-3-32 (1: GND, 2: HOT, 3: COLD) × 1 pair
  • Output impedance    100Ω or less
  • Nominal output level    +6dBu (1.55Vrms, Ref. level: –9dB), +4dBu (1.23Vrms, Ref. level: other than –9dB)
  • Maximum output level    +15dBu (4.36Vrms), +18dBu (6.16Vrms), +20dBu (7.75Vrms), +22dBu (9.76Vrms), +24dBu (12.28Vrms)
  • Connector    1/4" (6.3mm) Stereo phone jack × 1
  • Output power    100mA + 100mA (THD+N 1% or less, into 32Ω)
  • Connector    D-sub 25 pin × 1
  • Format    AES3-2003/IEC60958-4 (AES/EBU)
  • Maximum input voltage    7mVp-p
  • Minimum input voltage    200mVp-p
  • Output voltage    3.5Vp-p
  • Connector    BNC × 1
  • Format    AES3-2003/AES-3id-2001 (AES/EBU)
  • Output voltage    1Vp-p/75Ω
  • Control I/O
  • EXT DC IN
  • Connector    XLR 4-32 (1: –, 2: NC, 3: NC, 4: +)
  • Input voltage    11 to 16V (2A)
  • Cascade/Word/Video In
  • Connector    BNC
  • Input voltage    5V TTL equivalent
  • Input impedance    75Ω ±10%
  • (Allowable frequency deviation of external synch: ±100ppm)
  • Cascade/Word/Video Out
  • Connector    BNC
  • Input voltage    5V TTL equivalent
  • Input impedance    75Ω ±10%
  • (Allowable frequency deviation of external synch: ±100ppm)
  • Sampling frequency    44.1k / 49.952; / 48lk / 48.048k / 88.2k / 96k / 176.4k /192k Hz
  • (47.952k / 48.048k Hz: 48kHz &pllusmn;0.1% pull-up/pull-down)
  • Connector    BNC
  • Input voltage    0.5 to 5Vp-p
  • Input impedance    10kΩ
  • Connector    BNC
  • Input voltage    2.0Vp-p
  • Input impedance    600Ω
  • USB
  • Connector    USB B-type 4-pin × 1
  • Format    USB2.0 HIGH SPEED (480MHz)
  • Connector    mini DIN (PS/2) × 1
  • AC 100 - 240V, 50/60Hz (AC adapter PS-1225L)
  • 10 AA batteries (Alkaline or NiMH)
  • External DC battery (DC 11 to 16V, 2A or more)
  • Power consumption    18W
  • Battery operation time    * All times are approximate. Continuous operation)
  • NP type battery    Li-ion: 14.8V / 4.6Ah (68W)
  • Playback    5 hours (JEITA)
  • Recording    5 hours (JEITA)
  • AA type battery    Ni-MH
  • Playback    2 hours (JEITA)
  • Recording    2 hours (48kHz, 24-bit, 8ch with phantom power OFF, varies with operating conditions. JEITA)
  • Dimensions (W×H×D)    10.6" × 3.9" × 10.2" / 270 × 99.7 × 260 mm
  • Weight    8.06 lbs. / 3.65 kg (excluding batteries)
  • Input (Mic/Line) → Line out    20Hz to 20kHz 0dB (±0.5dB) Fs=All
  • at 40kHz –1dB (±1.0dB) Fs=88.2k/96kHz
  • at 80kHz –3dB (+1dB/–2dB) Fs=176.4k/192kHz
  • Input (LINE) → Line out    0.003% or less (Ref. level: when –20dB, +23dBu input 1kHz, AES-17 LPF)
  • Input (MIC –25) → Line out    0.02% or less (Ref. level: when –20dB, –10dBu input Trim +20dB 1kHz, AES-17 LPF)
  • Input (MIC 0) → Line out    0.02% or less (Ref. level: when –20dB, –35dBu input Trim +20dB 1kHz, AES-17 LPF)
  • S/N radio
  • Input (LINE) → Line out    11-dB or more (22kHz LPF A-weighted)
  • Input (MIC –25) → Line out    100dB or more (22kHz LPF A-weighted)
  • Input (MIC 0) → Line out    100dB or more (22kHz LPF A-weighted)
  • OS    Windows XP, Windows Vista, Windows 7
  • CPU    Pentium 300MHz or faster
  • Memory    128MB or more
  • USB port    USB2.0 (Intel chipset host controller is recommended.)
  • OS    OS X10.2 or later
  • CPU    PowerPC G3, G4, Intel Mac 266MHz or faster
  • Memory    64MB or more
  • USB port    USB2.0 (Intel chipset host controller is recommended.)
