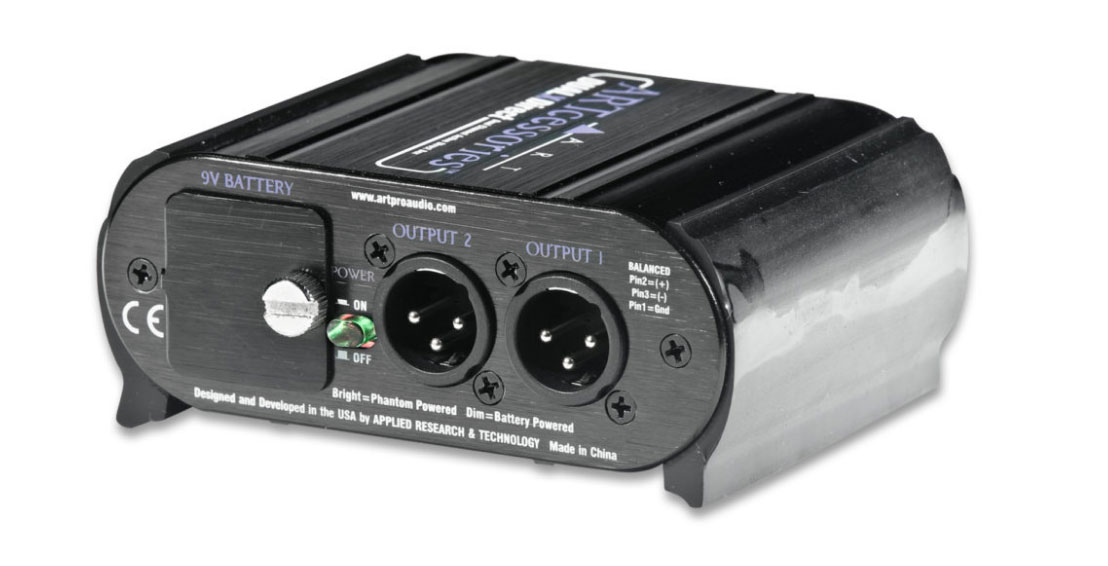

dualxdirect back

Art

DUALXDirect

Code: 3596

Dual Professsional Active Direct Box

Price: €96.00
Price: €96.00
BUY Online: €89.00
BUY Online: €89.00
You Save €7
You Save €7
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

The DUALXDirect provides two independent high quality active interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs. Each of the high impedance 1/4" and XLR inputs (provided via "combo" jacks) are buffered and converted by very low noise active electronics into an isolated, balanced, low impedance signal output. The DUALXDirect has an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALXDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

    • Fully Active Design
    • Phantom Voltage or 9v Battery Powered
    • Converts High-Impedance Balanced / Unbalanced Inputs Into 600 Ohm Balanced Outputs
    • Switchable input attenuation (0, -20, -40 dB) Switchable low pass filter
    • Switchable phase invert
    • Switchable ground lift (fully isolates inputs from chassis and outputs)
    • ¼-Inch TRS | XLR Combi Jack Inputs
    • Rugged Extruded Aluminum Case
    • Dimensions (WxDxH): 99 x 117 x 47 mm
    • Weight: 0.38 kg
