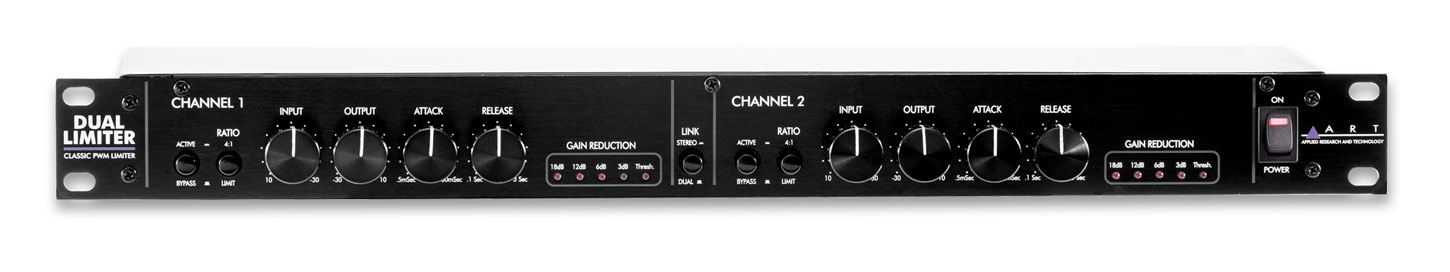

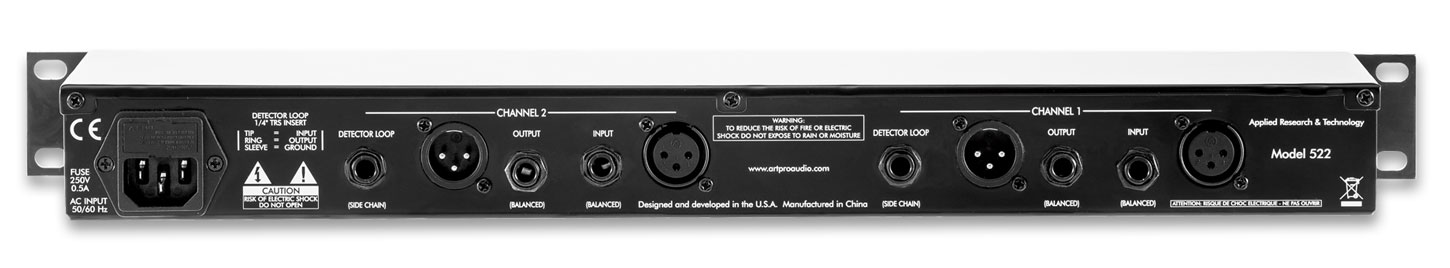

Dual Limiter

Code: 5943

Classic PWM Limiter

Price: €298.00
Price: €298.00
BUY Online: €268.00
BUY Online: €268.00
You Save €30
You Save €30
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

years

The DUAL LIMITER has a unique design that will enhance the sonic textures of your audio system for years to come. Developed in partnership with studio and live-sound engineers, the DUAL LIMITER is very musical.

The heart of the Dual Limiter is a unique PWM gain control circuit. Combined with its’ intelligent detector, the result is a Cl​ass

    • Two channels of dynamics processing
    • Selectable stereo linking of channels
    • XLR balanced inputs and outputs
    • 1/4″ TRS active balanced inputs and outputs Variable Attack and Release controls
    • Selectable Slope
    • Hardwire bypass
    • 5-segment Gain Reduction LED array
    • Internal power supply
  • Equivalent Input Noise: -97dBu (20-20kHz)
  • Input Impedance:    20k Ohms
  • Output Impedance: Balanced/Unbalanced – 150 Ohms
  • Maximum Input Level: +20dBu
  • Maximum Output Level: +20dBu
  • Overall Gain: +40dB max
  • Frequency Response: 10Hz to 30kHz (+/- 1dB)
  • Dynamic Range: >105dB (20-20kHz)
  • Attack Time: 0.5mSec. to 50mSec., variable
  • Release Time: 100mSec. to 3 Sec., variable
  • Slope: 4:1 or >20:1, switchable (OR 2:1 or 1.5:1 when patching output to det. loop input)
  • Total Harmonic Distortion: 0.03% (typical) @ 0dBm Out
  • Power Requirements: USA – 105 to 125 VAC / 60 Hz, 1/2A fuse, <15W
  • Export units configured for country of destination.
  • Dimensions: 1.75″ H x 19″ W x 5.9″ D (44.5mm x 482.6mm x 150mm)
  • Weight: 4.7 lbs (2.1 kg)
