Presonus

Central Station Plus

Code: 2224

Professional Studio Monitoring System

Price: €748.00
Price: €748.00
BUY Online: €598.00
BUY Online: €598.00
You Save €150
You Save €150
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

years

Central Station plus combines the Presonus Central Station with the CSR-1 Remote Control to create the professional studio monitoring solution. It lets you playback from multiple monitor sources, so you be sure your final mix is the way you want it to be.

Central Station plus is the ultimate studio-monitoring interface for the modern digital studio. The Central Station features three sets of stereo analog inputs to switch between input sources such as: DAW, mixer, CD/DAT/Tape player, or keyboards/samplers. Two stereo analog inputs feature TRS balanced and the third stereo input features RCA inputs with trim control for level matching of input signals. In addition, the Central Station will accommodate two digital inputs via S/PDIF or TOSLINK providing D/A conversion up to 24Bit/192kHz.

This allows you to monitor DAW and CD/DAT outputs through the same professional quality converter for the most accurate A/B comparison and highest quality monitoring environment. The digital to analog converter offers the highest possible audio quality with over 117dB dynamic range and ultra high quality analog circuitry.

The Central Station features three sets of monitor outputs, each with their own set of passive trim controls. The monitoring section also provides MUTE, DIM and MONO switches. In addition, the Central Station includes a set of CUE outputs that can feed headphone amplifiers and a separate stereo MAIN line level output.

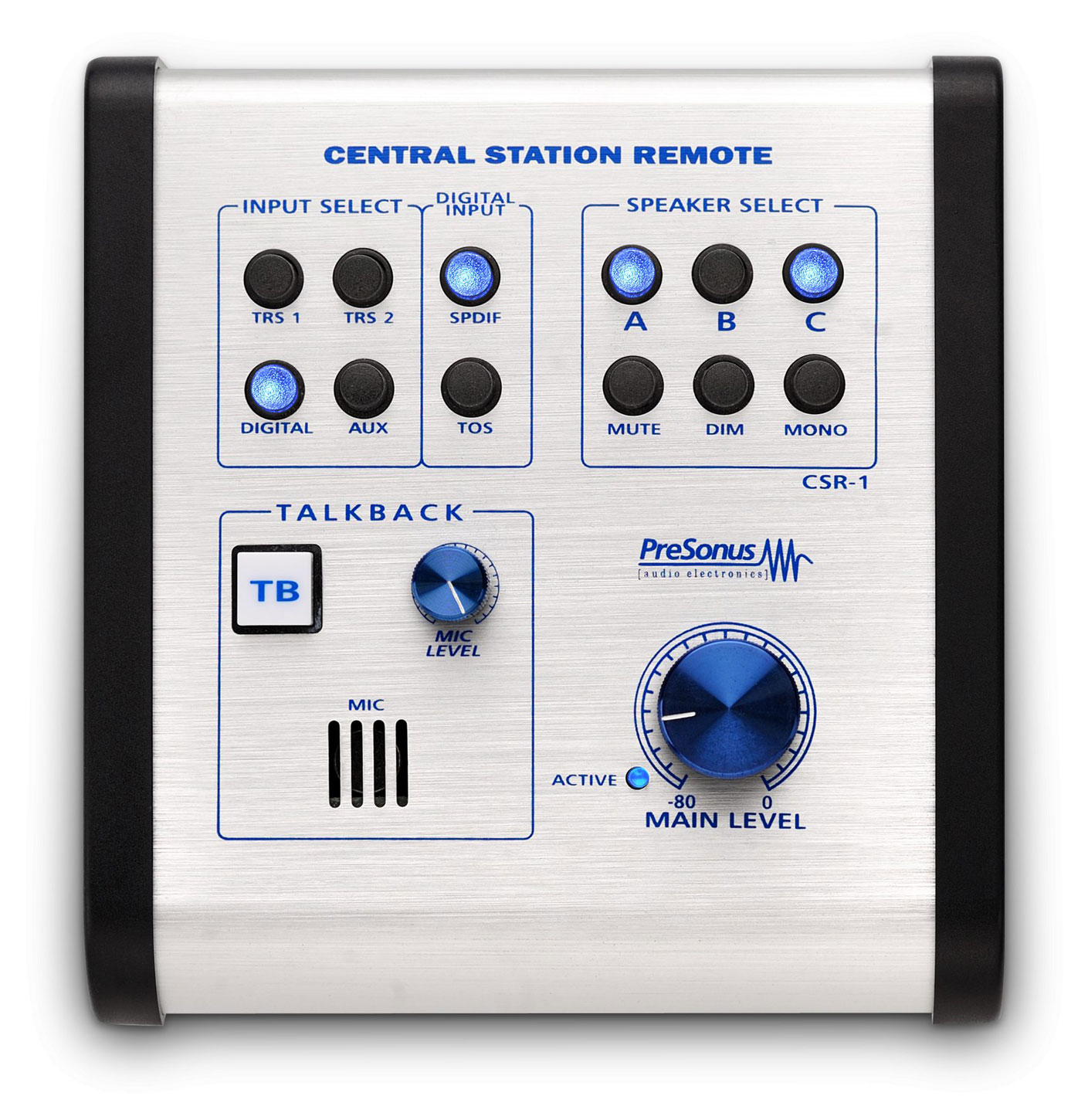

The Presonus CSR-1 Remote connects to the rear of the Central Station via db15 connector to control VOLUME, TALKBACK, MUTE, input source switching and speaker output switching functions. Keep the Central Station in your rack with your gear and use the CSR-1 for ultimate control and flexibility.

    • 3 sets of stereo analog inputs let you switch between sources
    • 2 sets of S/PDIF digital inputs (coax and optical)

    3 sets of stereo speaker outputs with:

    • Speaker Select switches
    • Recessed trim pot for each speaker output

    Cue section with:

    • Input-select switch
    • Output-level control

    Main section with:

    • Input-select switch
    • Aux-input level control
    • Output-level control
    • Mute, Dim (-20 dB), and Mono switches

    2 headphone outputs, each with:

    • Dual-function volume controls
    • Main-Cue input switches
    • Passive audio path: no op amps or IC's in main audio path
    • Onboard talkback microphone
    • Talkback microphone input w/level control (feeds headphone and cue outputs)

    Dual 30-segment, fast-acting, peak-hold LED metering (dBu and dBfs) with:

    • Clear Peak switch
    • Calibrate to match DAW or other audio device
    • Footswitch jack for hands-free talkback operation

    Included Control Station Remote (CSR-1) provides remote control of:

    • Main Volume
    • Input select
    • Output select
    • Talkback
    • Mute
    • Dim
    • Mono

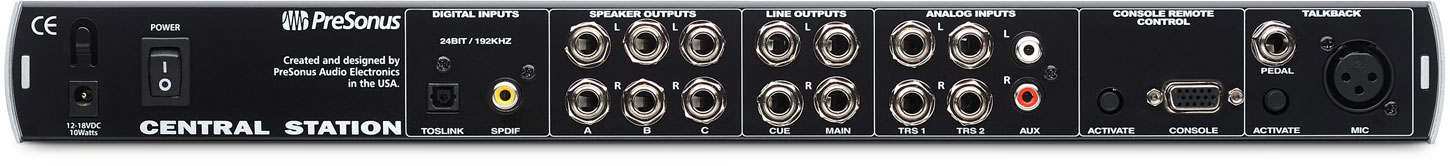

    Input/Output

    • 4 balanced ¼" analog line inputs (2 L/R pairs)
    • 2 unbalanced RCA analog line inputs (L/R pair)
    • 1 stereo S/PDIF optical (TOSLINK) digital input
    • 1 stereo S/PDIF coax (RCA) digital input
    • 1 balanced XLR talkback-microphone input
    • 6 balanced ¼", line-level speaker outputs (3 L/R pairs) w/separate, passive volume controls
    • 2 balanced ¼", line-level Main outputs (1 L/R pair) with source selection
    • 2 balanced ¼", line-level Cue outputs (1 L/R pair) with volume control and source selection
    • 2 stereo ¼" headphone jacks w/dual-function volume controls and Main-Cue input switches
    • 1 DB15 port for optional Control Station Remote (CSR-1)

    Digitalia

    • S/PDIF coax and optical digital inputs
    • High-definition, 24-bit, 192 kHz D/A converters (115 dBu dynamic range)

    Physical

    • 1U 19" rack-mountable, rugged steel chassis
    • External AC power supply
    • Weight: 1.3Kg
    • Dimensions: 483 x 140 x 44 mm
