Wireless Microphone Sets

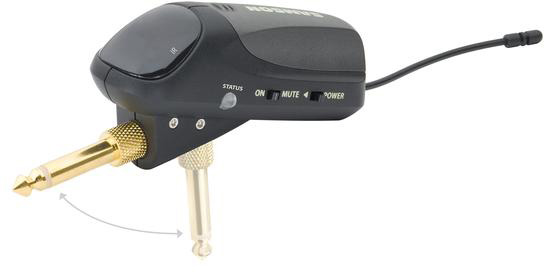

AG8 Guitar Transmitter Dual Plug display
SAMSON AirLine 88 AG8X Wireless Guitar System Transmitter 2 Headphones  1

AirLine 88 AG8 Guitar

Code: 4226

UHF Wireless System

Price: €378.00
Price: €378.00
BUY Online: €328.00
BUY Online: €328.00
You Save €50
You Save €50
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

Get Physical, Go Wireless.

Samson's AirLine 88 AG8 Guitar system offers true wireless freedom without the hassle of a beltpack or cable. Featuring a plug-in transmitter with a dual-position connector that is designed to fit a variety of guitar jacks, this frequency-agile UHF wireless system provides high definition sound, premium reliability and a 300' operating range for guitars, basses and other stringed instruments.

The Wireless Future

The AirLine 88 AG8 system continues Samson's longstanding commitment to wireless innovation. Designed to be an extension of your instrument rather than a separate component, the AG8 Guitar Transmitter lets you rule the stage with confidence. It provides IR sync to wirelessly match the receiver and transmitter frequency, an audio Mute switch, battery life LED indicator and up to 12 hours of operation on a single AA battery.

A Multi-Instrumentalist

Can you really use only one guitar? Samson doesn't think you should have to make that choice. That's why the AG8 plug-in transmitter was designed with a custom, dual-position connector that can fit both Fender® (Stratocaster) and Gibson®-style guitar output jacks. Airline 88 Guitar also provides exceptional low frequency clarity ideal for bass guitars. It's even a great wireless solution for acoustic-electric guitars, electric violins and accordions.

Tour Support

Offering frequency-agile operation, the system’s rack mountable CR88 Wireless Receiver provides 16 selectable channels for reliable performance no matter where you are. The receiver's True Diversity design minimizes dropouts, while tone key technology prevents unwanted noise when your transmitter is off or out of range.

    • Frequency agile UHF wireless system
    • 16 operating channels across 24MHz bandwidth
    • Up to eight simultaneous systems per frequency band (region dependent)
    • Rackmount kit included
    • IR sync wirelessly matches receiver and transmitter frequency
    • True Diversity design minimizes dropouts
    • Tone key prevents unwanted noise when transmitter is off/out of range
    • 1/4-wave antennas
    • Half-rack receiver design
    • LED display indicates operating channel
    • Balanced XLR, unbalanced 1/4" outputs
    • Plugs directly into guitar jack (no beltpack or cable required)
    • Dual-position connector fits a variety of guitar jacks
    • Offers up to 12 hours of battery life using single AA battery
    • Low battery LED indicator
    • 300' operating range (line-of-sight)
    • Variable Gain control
    • Mute switch
  • Working Range 300' (100m) line of sight
  • Audio Frequency Response 50 Hz - 15 kHz
  • T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu)
  • Dynamic Range >100 dB A-weighted
  • Signal to Noise >90 dB
  • Operating Temperature –10°C (14°F) to +60°C (+140°F)
  • Tone Key Frequency 32.768 kHz
  • Input Connector 1/4” Plug
  • Input Impedance 1MΩ
  • Input Gain Range 30dB
  • RF Power 5mW EIRP
  • Power Requirements 1 x AA (LR6)
  • Battery Life 5 hours
  • (1/4” plug is mounted at 45°)
  • Audio Output Level - Unbalanced +14 dBu
  • Audio Output Level - Balanced +9 dBu
  • Audio Output Impedance - Unbalanced 810 Ohms
  • Audio Output Impedance - Balanced 240 Ohms
  • Sensitivity -100 dBm / 30 dB sinad
  • Image Rejection >50 dB
  • Operating Voltage 15 VDC 200mA
  • Weight: 1.2 kg
  • Box Dimensions: 32 x 23 x 10 cm
