ProSplit

Code: 5942

Transformer Isolated Mic Splitter

Price: €99.00
Price: €99.00
BUY Online: €88.00
BUY Online: €88.00
You Save €11
You Save €11
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it within 24 hours, at your closest courier!
With free delivery for orders total € 100 +
Add to Cart

In Stock

years

The ProSplit provides one direct output and one transformer isolated output from a single microphone. Applications include sending the direct output to the main or Front-of-House mixer, with the second isolated output being sent to a monitor or recording mixer. The direct output passes phantom power from the main mixer to the microphone for use with condenser microphones.

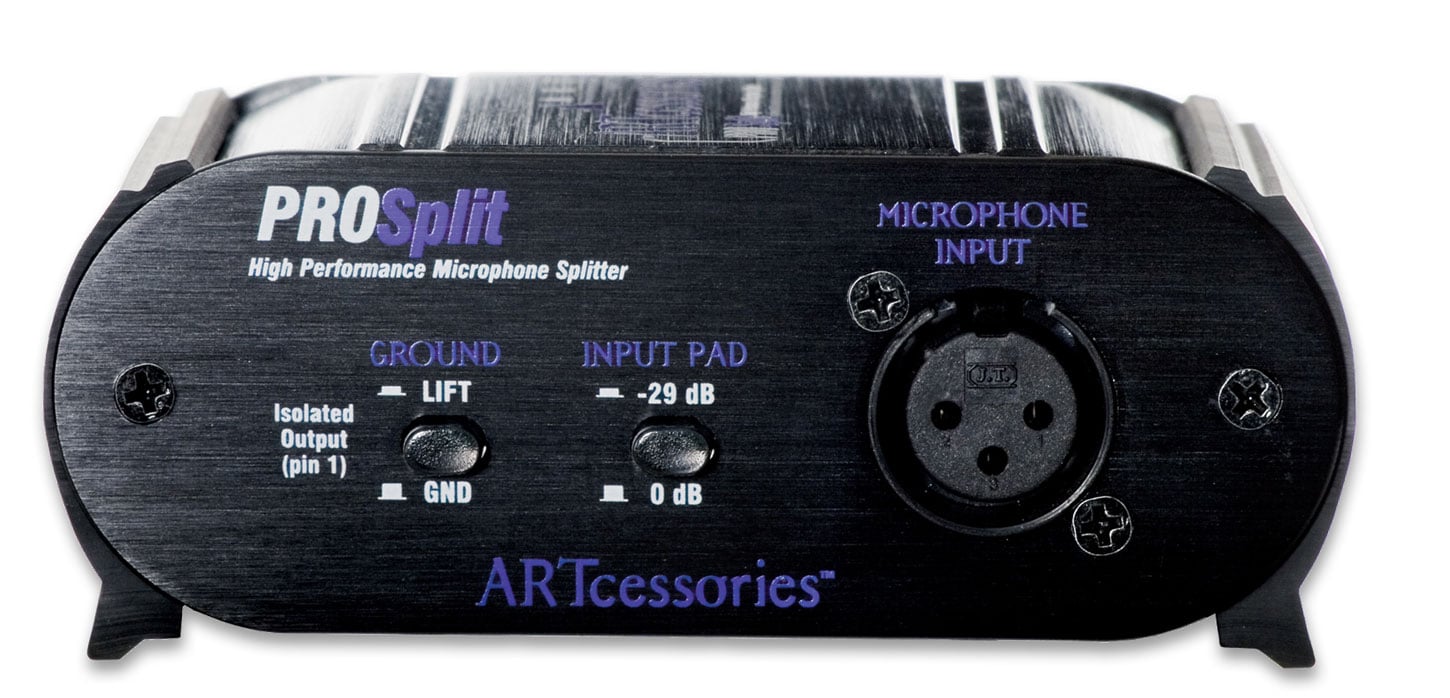

The ProSplit includes a ground-lift switch on the isolated output to reduce noise due to ground loops between connected equipment. For versatility the ProSplit also features an attenuator pad switch on the input that can be used to alternately connect a pre-amplified (line-level) signal to the two microphone-level ProSplit outputs.

    • Frequency Response: 20Hz to 20kHz, ±0.25dB @ -15dBu [email protected]
    • Total Harmonic Distortion: <0.26% from 20Hz to 20kHz, -15dBu input
    • <0.1% from 45Hz to 20kHz, -15dBu input
    • 0.002% Typical @ 1kHz, -15dBu input
    • Phase Shift: <10 degrees @ 20kHz (Ref, 1kHz)
    • Input Impedance: >1.1k Ω @ 1kHz (Typical driving source impedance is 150 Ω)
    • Ouput Impedance: <255 Ω @ 1kHz (Typical output load impedance is 1k Ω)
    • Maximum Input Level: -1.4dBu @ 20Hz/+3.5dBu
    • CMRR    >105dB @ 60Hz / >80dB @ 3kHz
    • Insertion Loss: Approximately 2dB @ 1kHz
    • Maximum Input Level For 1% THD    -1.4dBu @ 20Hz/+3.5dBu @ 30Hz / +9.4dBu @ 50Hz
    • Dimensions:    1.85″ H x 4.6″ W x 3.5″D (47mm x 117mm x 89mm)
    • Weight: 0.9 lbs (0.4 kg)
