Wireless Microphone Options
6066 2

6066

Code: 6961

Subminiature Headset Microphone

Pre-Order

Enquire to be notified upon availability

years

The capsule of the 6066 CORE Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability – three qualities that truly matter. By shrinking the newly introduced CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

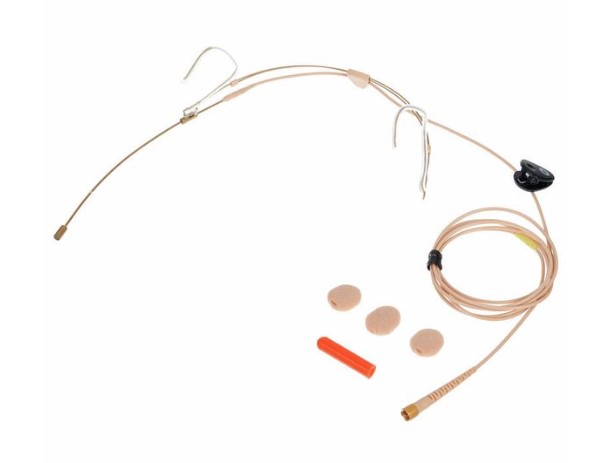

Beyond this minimized size and maximized sound potential, these mics also sport a completely redesigned, lightweight, one-size-fits-all headset that attaches over the ears for maximum comfort. 3-point ear grips with spring mechanisms help grip below the ears and to the side of the head for added security. A 2-way adjustable boom system (length and height) with an anti-rotate mechanism makes this new headset very easy to fit. A new 90° cable management system safeguards the cable and directs it down the wearer’s back, where it can’t be seen.

Between the sound quality and the comfort, once you try it we're sure you'll never want to wear another headset mic solution.

IP58 certified
The CORE Subminiatures, are IP58 certified. This durability is achieved through a number of defense mechanisms:

  • Water-repellant nano-coating of the cover and housing
  • Hermetic sealing of the sensitive amplifier at the core of the mic
  • Dual gold plating of the diaphragm

    • Amazing 3 mm CORE by DPA capsules technology
    • Renowned DPA sound in a 60% smaller capsule
    • One-size-fits-all, headset fits securely and comfortably
    • 2-way adjustable, non-reflective boom with locking system
    • Unique, comfortable 3-point gripping system above, below and behind the ear
    • New 90° cable management constructed to guide the cable and minimize cable breaks
  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Principle of operation: Pressure
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
  • Sensitivity, nominal, ±2.4 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
  • Distortion, THD < 1%: 125 dB SPL RMS, 128 dB SPL peak
  • Dynamic range: Typ. 102 dB
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Rated output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
  • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter
  • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Color: Black, beige or brown
  • Weight: 11 g (0.4 oz) incl. Cable and MicroDot connector
  • Microphone head size (h x w x d)3.4 / 8.9 mm (0.13 / 0.35 in)
  • Capsule diameter: 3 mm (0.12 in)
  • Cable length: 1.3 m (4.3 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
