Mic Pres & Processing

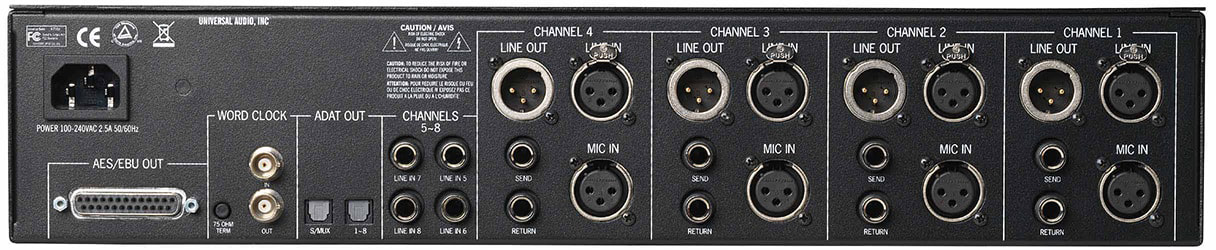

4 710D Back

4-710d

Code: 3701

Four-Channel Tone-Blending Mic Preamp w/ Dynamics

Price: €3398.00
Price: €3398.00
BUY Online: €2598.00
BUY Online: €2598.00
You Save €800
You Save €800
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order Usually available within 4-5 days from order

years

By merging the best of UA’s classic analog design with smart modern features and workflow enhancements, the 4-710d is the most flexible microphone preamp in the UA lineup.

Featuring four high-end mic/line preamps with a unique tube/solid-state tone blending circuit, as well as classic 1176-style compression on each mic channel, the 4-710d also offers tons of digital I/O to expand your setup.

NOW YOU CAN:
Track through meticulously designed UA tube preamp circuitry.
Blend tube and solid-state textures for tons of flexibility.
Harness classic 1176-style compression on each mic channel.
Add 8 inputs to any Apollo interface via ADAT optical connection.
Bring your Mic Collection to Life with a Wide Range of UA Preamp Tones.
Bring your Mic Collection to Life with a Wide Range of UA Preamp Tones.
At the core of the 4-710d are four channels of tone-blending “Twin-Finity” mic preamps. Each channel offers. 100% tube and 100% solid-state signal path, as well as the ability to continuously blend between the two circuits.

This gives you tons of textures — from creamy to crunchy — and lets you dial in the perfect amount of tube grit or solid-state sheen.

A Legendary Compression Circuit
Each of the 4-710d’s four channels features true-bypass 1176-style compression, including specially tuned "fast" and "slow" settings. This enables quick, on-the-fly tweaking for fattening up a vocal, hold a bass guitar in place, or for adding sizzle and texture to synths and horns.

Add Inputs and Professional A/D Conversion
With eight analog inputs, the 4-710d is perfect for expanding your studio. Digitized via ultra high-quality 24-bit A/D converters at selectable sample rates up to 192 kHz, the 4-710d easily connects to most interfaces with its dual ADAT optical or AES/EBU DB-25 connectors.



    • Four TEC Award-winning 710 Twin-Finity™ microphone/line preamps, each featuring:
    • Dual-path 285-volt Class-A tube and transimpedance solid-state preamps
    • Phase-aligned tone-blending of tube and solid state circuits, creamy to crunchy
    • Newly designed 1176-style compression circuit per preamp channel
    • JFET Direct Input with 2.2MO ultra Hi-Z impedance w/auto input override
    • Large backlit VU meters for flexible metering of input drive, gain level, and gain reduction
    • Balanced send/return inserts (half-normalled)
    • 48V phantom power
    • 75 Hz low cut filter
    • Polarity switch
    • Monolithic balanced output stage
    • Eight channels of high quality 24-bit A/D conversion:
    • Selectable sample rates up to 192 kHz
    • Digital output via dual ADAT optical and AES/EBU DB-25 connectors
    • 8-channel soft limiter (switchable for all channels)
    • Ultra-low jitter clock subsystem
    • LED metering array with clip/hold indicators
    • 75O BNC work clock I/O
    • Digital outputs anti-pop protection on power-up
    • Universal voltage internal power supply
    • Heavy-duty metal construction, two-space rack unit
    • One year warranty including parts and labor
    • Dimensions:  9 x 30 x  48 cm
    • Weight: 5kg
