Audio Interfaces Thurderbolt

Element 46

Code: 3862

Premium 12 IN x 14 OUT Thunderbolt Audio I/O Box for Mac

Pre-Order

years

Element 46 is great for any collaborating musician recording at home, on the go or in a small project studio. With 4 analog inputs (including 4 world-class mic preamps), 2 headphone outputs and stereo speaker outputs, Element 46 is the perfect upgrade from an entry level audio interface.

Apogee’s Element 24, 46 and 88 are Thunderbolt audio I/O boxes for Mac. The Element Series takes the best of cutting-edge Apogee gear like Symphony I/O Mk II, Ensemble Thunderbolt and Groove and puts it into simple form factors. With streamlined hardware features and advanced software control, the Element series delivers ultimate recording quality and performance at unprecedented prices.

Element 24, 46 and 88 are built to work together. Connect any two Elements directly to a Thunderbolt port on your computer and increase the number of Analog I/O in your recording system. When using multiple Elements, the Optical I/O is for the low latency mixer internal bussing.

  • 12 IN x 14 OUT Thunderbolt Audio I/O box
  • AD/DA conversion for recording up to 192kHz/24-bit
  • 4 analog inputs with selectable 48v phantom power for connecting microphones, instruments or line-level devices
  • 4 world-class mic preamps with up to 75 dB gain and advanced stepped gain circuit design

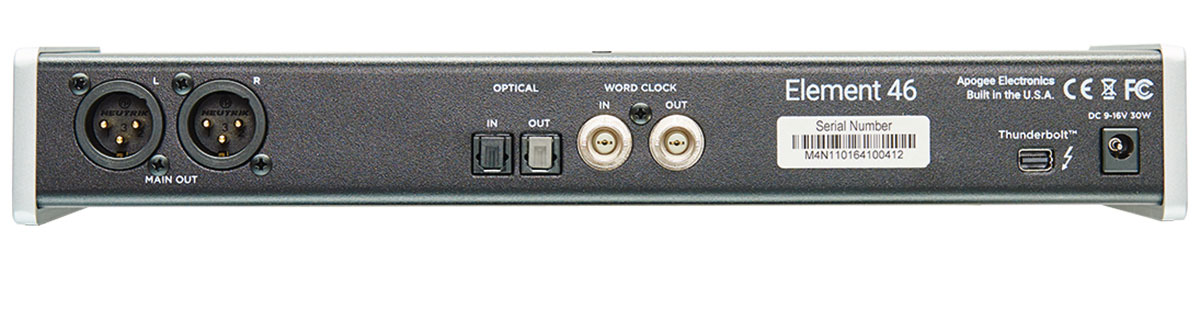

  • 4 analog outputs: 2 balanced L/R XLR outputs + 2 1/4” stereo headphone outputs
  • Single port Thunderbolt connectivity to Mac for ultra-low latency performance: 1.41ms round-trip at 96kHz with a 32 buffer setting
  • Optical IN: Supports ADAT (8 channels 44.1-48 kHz), SMUX (4 channels 88.2-96 kHz) & S/PDIF (2 channels, up to 192 kHz) on 1 Toslink connector
  • Optical OUT: Supports ADAT (8 channels 44.1-48 kHz), SMUX (4 channels 88.2-96 kHz) & S/PDIF (2 channels, up to 192 kHz) on 1 Toslink connector
  • Word Clock IN/OUT via BNC connections for syncing with other digital audio gear
  • Element Control Software for Mac provides all control of hardware parameters including input gain, output level and low latency monitoring
  • Element Control Mobile App provides wireless remote control of hardware via iPhone, iPad or iPod touch
  • Works with Apogee Control – Optional desktop hardware remote control (Sold separately)
  • Multi-Unit Thunderbolt support – Connect any two Element audio I/O boxes directly to Thunderbolt ports on your computer.
