ATUC-IRCUDAN

Code: 7247

Hybrid Control Unit with Dante

Price: €4738.80

BUY Online: €4490.00

You Save €248.8

including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout

Add to Cart

Pre-Order usually available within a week from order.

The 19″ rack-mountable ATUC-IRCUDAN allows for the use of both infrared and wired discussion units, providing 24-bit/48 kHz digital signal processing (with 12-band feedback suppressor), automated gain control (AGC), mic gain and mic EQ for each connected discussion unit. It can be operated locally, through the Web Remote interface (no software required), or third-party IP control systems. Offers three selectable conference modes (Free Talk, Request to Talk, and Full Remote) and various override settings. Can record WAV and MP3 files onto a connected USB mass storage device. Includes two Mic/Line inputs, two AUX inputs and two interpretation return inputs. The ATUC-IRCUDAN includes all of the features of the ATUC-IRCU, plus a Dante™ output with redundancy. For wired or wireless systems.

Features:
Specifications:

Each ATUC-IRCU infrared control unit supports a maximum of 200 ATUC-IRDU discussion units and 100 ATUC-50DU/IU/INT units
Systems can be configured in either daisy chain or ring topology
Unlike typical UHF wireless systems that broadcast through walls, the ATUC-IR infrared transmission keeps your signals safe and secure, with no information leakage
IR transmission does not require any form of frequency coordination
Built-in WAV and MP3 recorder lets you record to a USB mass storage device
Control available through Web Remote interface and third-party IP Control Systems
Includes Dante™ output with redundancy

Overall SystemOperating Frequencies: Infrared
Frequency Response: +1.0, -2.0dB, 20Hz - 20kHz (+4dBu output at 1kHz)
Data Length / Sampling Frequency: 24bit/48kHz
Dynamic Range: 110dB, A-Weighted
Signal-to-Noise Ratio: 90dB, A-Weighted
Total Harmonic Distortion: Less than 0.03%, 1 kHz unity
Operating Temperature Range: 0 - 40°C

Operating Humidity: 25 - 85%
Simultaneous Use: 300 (200x ATUC-IRDU + 100x ATUC-50CU/ATUC-50IU)
Headroom: 20dB
Latency MIC Input to Output:1ms
DU to CU: 1.2ms
Number Of Channels: Voice: 10 channels , Monitor: 4 channels

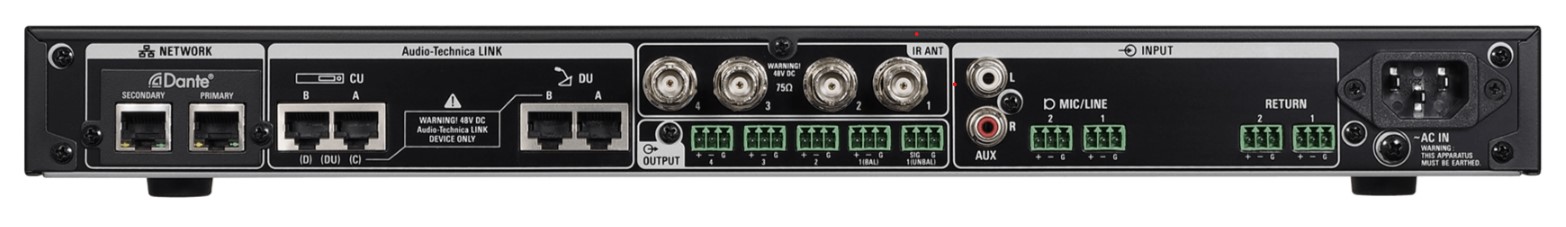

Control UnitConnections: Inputs: MIC/LINE×2, AUX×1 (ST), INTERPRETATION RETURN×2: Outputs: BAL.×4, UNBAL.×1, Link/Chain: DU A/B terminals, CU A/B terminals (DU C/D terminals), Dante/control: Dante Primary/Secondary, NETWORK port IR Antenna:
Equivalent Input Noise: Mic/Line: Less than –126dBu, Rs = 150ohm
Residual Noise: Less than –86dBu, A-Weighted
Crosstalk at 1 kHz: Less than –80dB
Power Supply: AC 100V - 240V 50/60Hz
Phantom Power: DC+48V
Power Consumption: 26W to 175W (maximum)
Dimensions: 434mm × 326mm × 44mm
Weight: 4.76kg
OLED Display: 20 × 2Character type, Color: Yellow
Operating life: 100,000hours
Accessories: Power cord, Euroblock connectors (9 pieces)
Infrared
Bandwidth: 1MHz - 10MHz
Modulation Method: FM
Recording
Compressed bit-rate: MP3 - 64kbps/128kbps/192kbps/256kbps/320kbps, Media: Via USB Storage Device (Supported file systems: FAT16/FAT32):: WAV - 1/2/3/4 track (BWF standard), MP3 - 1/2 track (Original format)
