TF-5

Code: 7013

Premium Small-diaphragm Condenser Cardioids

Price: €1798.00
Price: €1798.00
BUY Online: €1298.00
BUY Online: €1298.00
You Save €500
You Save €500
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order Usually available within 4-5 days from order

years

The TF-5 represents a new standard for small-diaphragm condensers. Offering the hallmark clarity and airiness you'd expect from a world-class 'pencil' mic, with a warm, natural character that sets it apart, the TF-5 is uniquely versatile.

Offered in a precision-matched pair, the TF-5 is the perfect microphone for a wide range of applications where incredible accuracy and detail is required, from stereo orchestral recording to capturing the nuances of an individual performance when used as a spot mic.

The New Standard
The TF-5 represents a new standard for small-diaphragm condenser microphones. Its state-of-the-art capsule is precision-engineered to sub-micron tolerances, giving it unprecedented consistency of tone and response. Crafted to perform magnificently in the most demanding musical recording applications, the TF-5 represents the ultimate expression of RØDE's manufacturing and acoustic design expertise.

Unique Versatility
The TF-5 offers the hallmark clarity and airiness of other small diaphragm microphones and adds to this a warmth that is often lacking in mics of this type, making it uniquely versatile.

The TF-5 performs brilliantly in a stereo pair for recording everything from drum and pianos to entire orchestras, or on its own for capturing the nuances of acoustic instruments or percussion.

Designed In Collaboration With Tony Faulkner
Pioneer. Legend. Maverick. Many words have been used to describe Tony Faulkner, the prolific and award-winning classical music recording engineer. But few of those words adequately capture his contribution to the field of music recording; his prolific career, his technical innovations and the body of wonderful recordings that feature his name. RØDE is proud to have worked with Tony in crafting this exceptional microphone.

    • Precision-matched small-diaphragm cardioid condenser microphones
    • Ultra-low noise, flat frequency response
    • Tight cardioid polar pattern
    • Warm, detailed sound
    • Designed in collaboration with Grammy® award winning classical producer and engineer, Tony Faulkner

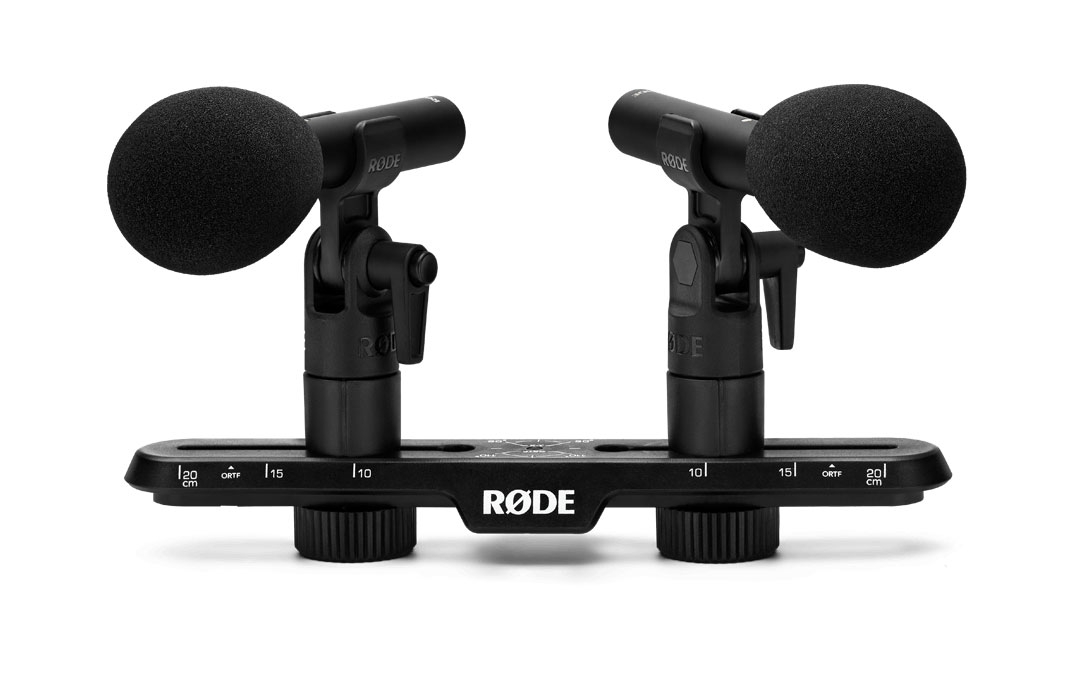

    • Comes in complete stereo recording kit, including the RØDE Stereo Bar, mic clips and windshields

    What's in the Box

    • Stereo Microphone Spacing Bar: 1 x Stereo Bar
    • Premium Small-diaphragm Condenser Cardioids: 2 x TF-5

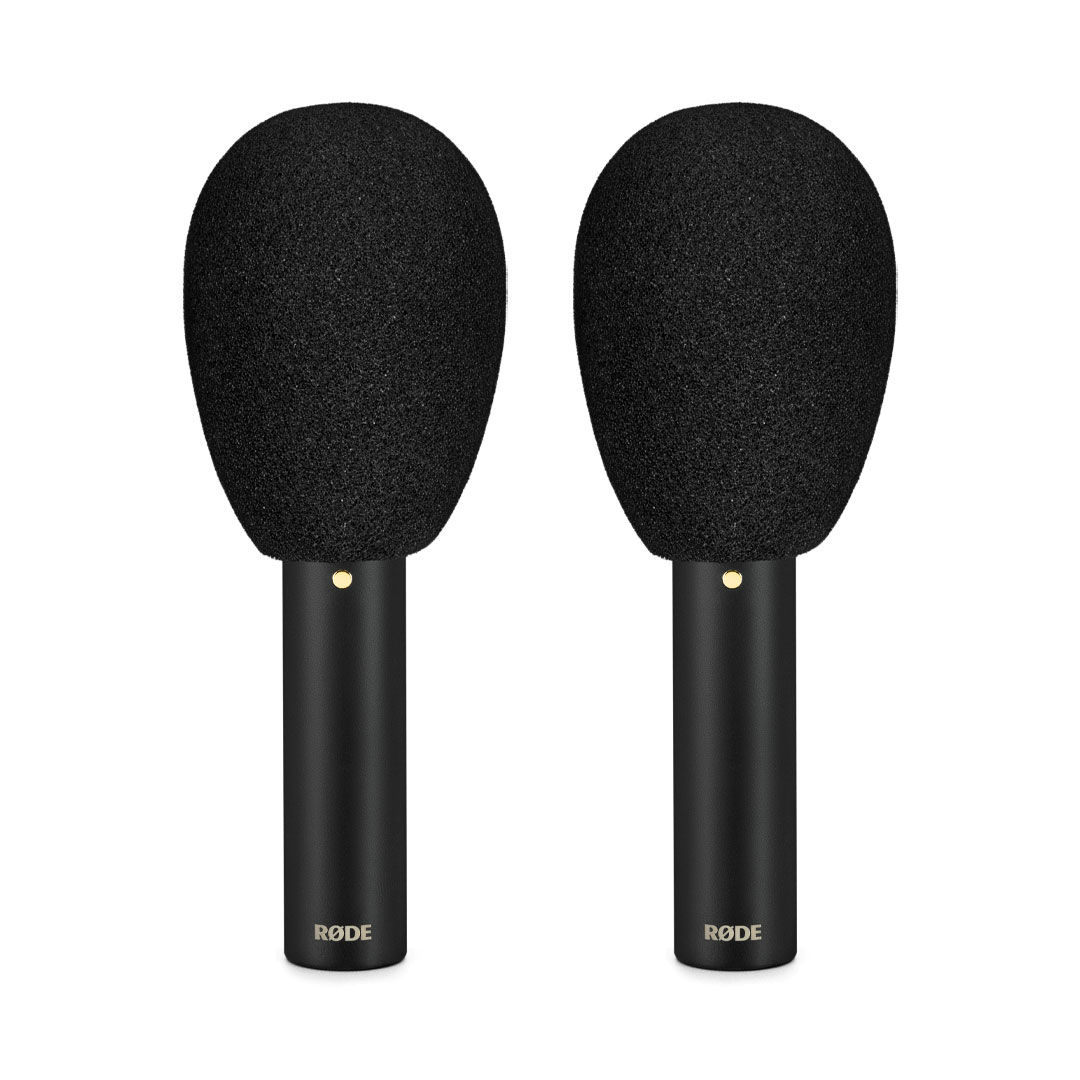

    • Windshield for TF-5: 2 x Windshield
    • Mic Clip for the TF-5: 2 x Mic Clip
    • 3/8 to 5/8 Adaptor for PSA1+ (black): 1 x 3/8" to 5/8" Adaptor
  • Acoustic Principle: Externally biased condenser
  • Active Electronics: JFET impedance converter with bipolar output buffer
  • Polar Pattern: Cardioid
  • Frequency Range: 20Hz - 20kHz
  • Frequency Range: 30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB
  • Output Impedance: 63Ω
  • Signal-to-noise Ratio: 80 dB
  • Equivalent Noise: 14 dB SPL (A-weighted, as per IEC651)
  • Input SPL @ 1% THD: 135 dB SPL (1kHz @ 1% THD, 600Ω load)
  • Sensitivity: -29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz)
  • Dynamic Range: 112.6 dB (1kHz @ Max SPL)
  • Power Requirements: 7mA @ 48V phantom power
  • Dimensions: 114 g each
  • Dimensions: 98.7 x 20 mm each
